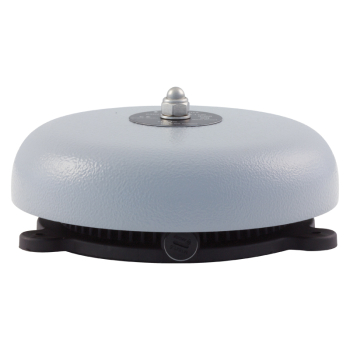

Electromechanical industrial bell with reinforced base.
Developed with acoustic electromagnetic unit with vibrating piston, the device generates a characteristic continuous sound.
The rugged steel structure of the bell provides high impact resistance and excellent protection against dust and water (IP66), suitable also for heavy duty applications.
ACOUSTIC FEATURES
Electromagnetic unit with vibrating piston
Continuous Sound
Frequency SIAD 215: 1000/15000Hz
| Approvals | CE UL |
|---|---|
| Dimensions (mm) | 227.5 x 96.5 |
| Colour | Grey |
| Materials (Body) | PA, ACC |
| Cable Size, Flexible (mm2) | M16 CABLE GLAND(READY) |
| Cable Size, Solid (mm2) | M16 CABLE GLAND(READY) |
| Ingress Protection | IP66 |
| Voltage | 24VDC |
| Sound Output Level dB | 98dB, 1 STEADY TONE 1000/150000Hz |
| Operating Temperature | -30 to +50℃ |
