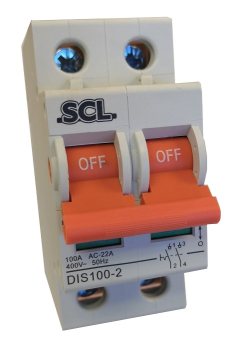

SCL MODULAR ISOLATION SWITCH 100AMP 2 POLE

Stock Code: DIS100-2

Descriptions

• Modular isolation switch
• 100A
• 2 Pole
• IP20
• Rated voltage 240/415V
• 50/60Hz
• IEC60947-3 / CE

Specifications

Approvals	IEC 60947-3 CE RoHS
Dimensions (mm)	81 (L) x 36 (W) x 77 (H)
Poles	2
Ingress Protection	IP20
Voltage	240/415V
Operating Temperature	-5 to +40℃
AC System	AC-22A
Features	Contact position indicator
Current Rating	100A
Mechanical Life	4000 Cycles
Electrical Endurance	2000 Cycles

Downloads

Click on any of the following links to download the file.

Datasheet (pdf)
