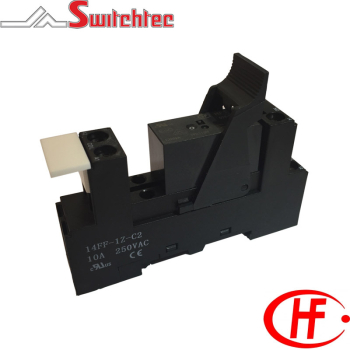

HONGFA PCB INTERFACE RELAY BMS RELAY 24VDC

Stock Code: TRM-24

Descriptions

No detailed description is available for this product.

Specifications

Approvals	CE, UL, VDE
Dimensions (mm)	52 x 75 x 15.8
Cable Size, Flexible (mm2)	1 x 4/ 2 x 2.5
Cable Size, Solid (mm2)	1 x 4/ 2 x 2.5
Operating Temperature	-40 to +85℃
Contact Arrangement	1C - Single Pole Changeover
Coil Voltage	24VDC
Relay Type	HF115FH0241ZS3AF
Relay Voltage	24VDC
Socket Type	14FF-1Z-C2
Power Consumption	250mW
Maximum Rated Switching Current	10AMP

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)
