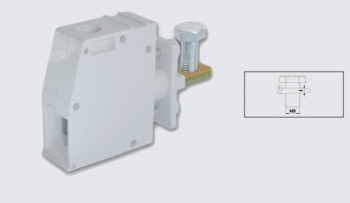

EUROCLAMP PANEL FEED THROUGH TERMINAL 150A 19mm GREY

Stock Code: MPT5018-GY

Descriptions

• 18.8mm pitch Through Panel Terminal Block
• Single pole solid block
• IP20 Touch proof terminals
• 150 Amp Current rating
• Polarised mouldings
• Moulded in grey UL94-V0 flame retardant PA
• Professional Rising Clamp style terminals
• Captive screws
• UL approved
• Alternative colours available upon request

Specifications

Colour	Grey
Amperage	150 AMPS
Poles	1
Materials (Body)	PA - UL 94 V0
Cable Size, Flexible (mm2)	50
Cable Size, Solid (mm2)	70
Voltage	1000V
Pitch	18.8mm
Materials (Terminals)	Copper alloy
Operating Temperature	-40 to +130℃

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)
