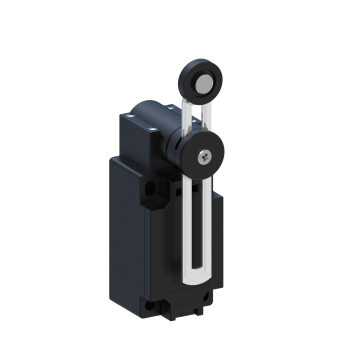

COMEPI PLASTIC LIMIT SWITCH NYLON ROLLER LEVER 1NO1NC SNAP

Stock Code: BP5H51Z11

•Plastic limit switch M20
•IP65 Rated
•Adjustable lever with nylon roller(∅22mm)
•Snap action contacts
•IEC 60947-5-1 / EN 60947-5-1
•M3.5 screw with cable clamp

ApprovalsIMQ - cULus - CCC - CSA - EAC - UKCA
HousingReinforced plastic
Manufacturer/BrandComepi
Terminal SizeM3.5 screw with cable clamp
Cable Size, Flexible (mm2)0.75-2.5mm
Cable Size, Solid (mm2)0.75-2.5mm
Ingress ProtectionIP65
Operating Temperature-25 to +70℃
Contact ArrangementSnap action (1NO + 1NC)
Resistance (Ohms)25
Current RatingAC-15 - 24V - 10A / 120V - 6A / 400V - 4A // DC-13 - 24V - 6A / 125V - 0.55A / 250V - 0.4A
