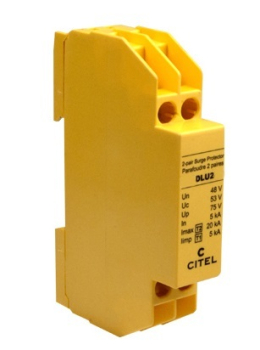

CITEL DIN RAIL TELECOMS SPD 1 PAIR RS232 RS485

Stock Code: DLUH-12D3

Descriptions

• Pluggable surge protection for «DIN» mounting

• 1-pair (DLUH) or 2-pair (DLUH2) versions

• Max. line current 2.4 A

• Monobloc

• All types of Telephone and Data lines

• Shield wire protection

• UL497A and IEC 61643-21 compliance

Specifications

Type	Telecom Data SPD, 1 pair DIN mount
Number of Protected Poles	1 Pair + Shielded
Nominal Discharge Current - In	5 kA
Max. Discharge Current - by pole Imax	20kA
Protection Level	30V
Features	Max line current IL: 2.4A
Network	Profibus-FMS, Interbus, FieldBus-H1, Batibus, RS232, RS485
Max. Frequecy	> 3MHz
Max Operating Voltage	15VDC
Max. Load Current (if connected in series)	300mA

Downloads

Click on any of the following links to download the file.

Datasheet (pdf)
