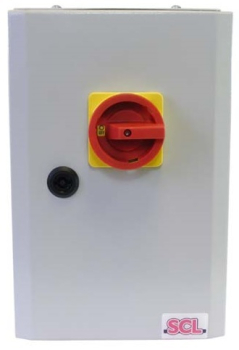

SCL ON-OFF FUSED SWITCH 32A 4P IP65 METAL ENC + FUSES

Stock Code: NTFS432

Descriptions

NTFS Metal Enclosed Switch Fuse

3 Pole & Switched Neutral (4th pole)
Fitted with 32A Fuses
IP65 RAL 7035 Enclosure
Padlockable in Off Position
IP20 Terminal Protection Included
AC21A 690VAC
Removable Top & Bottom Gland Plates
Door earth lead fitted as standard
3 Pole Fuse Holder
Conforms with IEC 60947 - 3
CE & UKCA Approved
SUPPLIED WITH BS FUSES

Specifications

Approvals	UL, CE
Dimensions (mm)	300x200x150
Colour	Grey RAL 7035
Amperage	32A
Poles	3P+N
Materials (Body)	Powder coated mild steel
Cable Size, Flexible (mm2)	0.5-6
Cable Size, Solid (mm2)	0.5-10
Ingress Protection	IP65

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)
