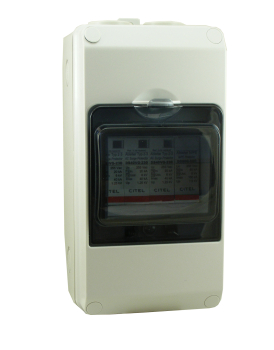

ENCLOSED 3 PHASE+N TYPE 2 SPD Imax 40KA 230/400V TNS/TNCS

ENCLOSED 3 PHASE+N TYPE 2 SPD Imax 40KA 230/400V TNS/TNCS

Stock Code: EPSPDT2-3PN40-TNS/TNCS
No detailed description is available for this product.
Dimensions (mm)240mm x 125mm x 102mm
Poles4 Poles (3P+N)
Materials (Body)Metal Distribution Box
Ingress ProtectionIP40
TypeType 2 AC Surge protector - Three Phase - Plugable
Connection ModeL/N or L/PE
Max. AC Operating Voltage255VAC
Nominal Discharge Current - In25kA
Max. Discharge Current - by pole Imax40kA
Protection Level1.25kV
Temporary Over Voltage (TOV) - 5 sec.335VAC Withstand
Remote SignalYes
