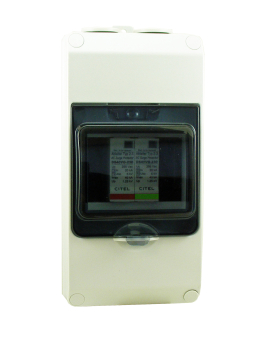

ENCLOSED 1 PHASE TYPE 2 SPD Imax 40KA 230/400V TT/TN

Stock Code: EPSPDT2-1PN40-TT/TN

Descriptions

No detailed description is available for this product.

Specifications

Approvals	IEC/EN 61643-11 cULus TUV EAC CE
Dimensions (mm)	L 235mm, W 130mm, D 95mm
Poles	Single Phase
Materials (Body)	Metal Distribution Box
Ingress Protection	IP40
Type	Type 2 AC surge protector - Single Phase- Plugable
Connection Mode	L/N or L/PE
Max. AC Operating Voltage	255VAC
Nominal Discharge Current - In	20kA
Max. Discharge Current - by pole Imax	40kA
Protection Level	1.25kV
Temporary Over Voltage (TOV) - 5 sec.	335VAC Withstand
Features	Configuration CT2 (common and differential mode)
Network	230/400V
