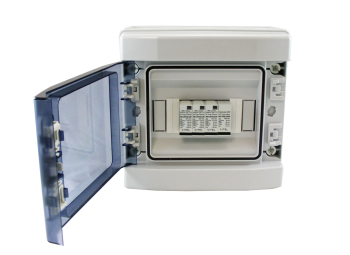

ENCLOSED 3 PHASE+N TYPE 1 SPD Iimp 50KA 230/400V TNS/TNCS

ENCLOSED 3 PHASE+N TYPE 1 SPD Iimp 50KA 230/400V TNS/TNCS

Stock Code: EPSPDT1-3PN50-TNS/TNCS
No detailed description is available for this product.
ApprovalsIEC/EN 61643-11 cULus TUV EAC CE
Dimensions (mm)L 260mm, W 160mm, D 110mm
Poles4 Pole
Materials (Body)Metal Distribution Box
Ingress ProtectionIP40
TypeType 1 + 2 AC Surge Protector
Connection ModeL/n or L/PE
Max. AC Operating Voltage255VAC
Nominal Discharge Current - In20kA
Max. Discharge Current - by pole Imax50kA
Protection Level1.3kV
Temporary Over Voltage (TOV) - 5 sec.335VAC Withstand
Remote SignalYes
FeaturesHigh Energy MOV, Configuration CT2 (common and differential mode)
