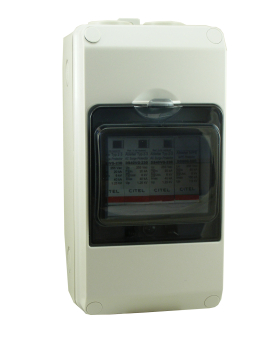

| Dimensions (mm) | 240mm x 125mm x 102mm |
|---|---|
| Poles | 4 Poles (3P+N) |
| Materials (Body) | Metal Distribution Box |
| Ingress Protection | IP40 |
| Type | Type 2 AC Surge protector - Three Phase - Plugable |
| Connection Mode | L/N or L/PE |
| Max. AC Operating Voltage | 255VAC |
| Nominal Discharge Current - In | 25kA |
| Max. Discharge Current - by pole Imax | 40kA |
| Protection Level | 1.25kV |
| Temporary Over Voltage (TOV) - 5 sec. | 335VAC Withstand |
| Remote Signal | Yes |
