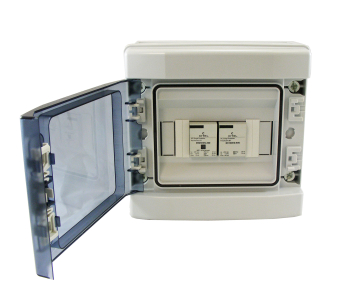

ENCLOSED 1 PHASE TYPE 1 SPD Iimp 50KA 230/400V TN

Stock Code: EPSPDT1-1PN70-TN

Descriptions

No detailed description is available for this product.

Specifications

Approvals	IEC/EN 61643-11 cULus TUV EAC CE
Dimensions (mm)	L 235mm, W 130mm, D 95mm
Poles	2 Pole
Materials (Body)	Metal Distribution Box
Ingress Protection	IP40
Type	Type 1+2 AC Surge Protection
Connection Mode	L/N or L/PE
Max. AC Operating Voltage	330VAC
Nominal Discharge Current - In	70kA
Max. Discharge Current - by pole Imax	70kA
Protection Level	2.5kV
Temporary Over Voltage (TOV) - 5 sec.	335VAC Withstand
Features	Configuration CT2 (common and differential mode)
Network	230/400V
