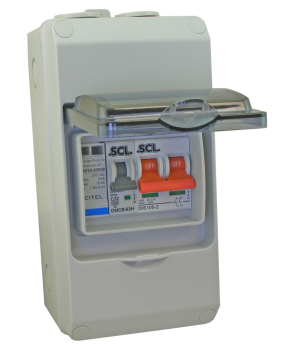

ENCLOSED 1PH SPD 230/400V 15KA + 1P 32A MCB + 100A 2P MAIN SW

Stock Code: EPSPD15-32MCB1002P

Descriptions

No detailed description is available for this product.

Specifications

Approvals	cULus, TUV, EAC, UKCA, CE
Amperage	Max load 20A
Poles	2
Materials (Body)	Steel metal enclosure
Ingress Protection	IP20
Voltage	230VAC
Operating Temperature	-40 to +85℃
Type	2
Number of Protected Poles	2
Nominal Discharge Current - In	20kA
Max. Discharge Current - by pole Imax	40kA
Temporary Over Voltage (TOV) - 5 sec.	335 Vac withstand
Remote Signal	Optional
Features	Remote signal
Network	TT/TN
Max VAC	25VAC
Cable Capacity	1.5mm-10mm (L+N) or 2.5-25mm (PE)

Downloads

Click on any of the following links to download the file.

Datasheet (pdf)
