Type 2 Termination

Type 2 Termination


  • 3A Switching capability

  • 1 Form C contact meets VDE 0631

  • Wash tight & flux proof versions available

  • Creepage/Clearance distance >8mm

  • 5KV Dielectric strength (between coil and contacts)

  • Contact material AgNi

  • Rohs compliant

  • Safety approvals UL/CUV & VDE

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price

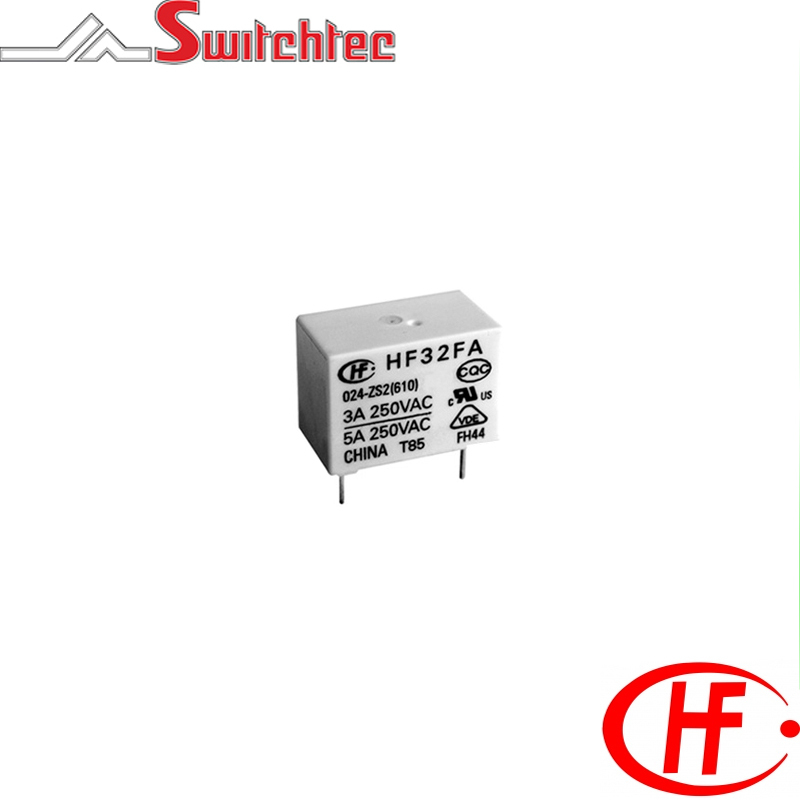

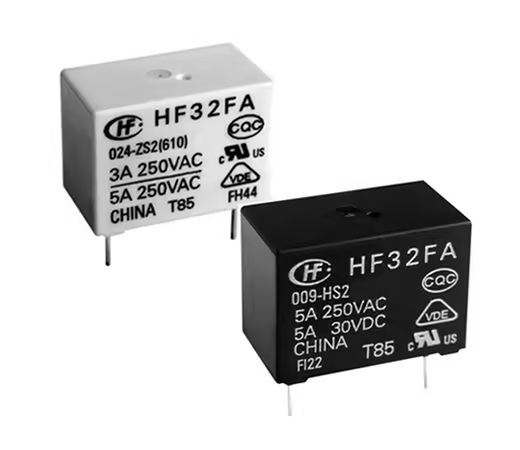

HF32FA003ZS2 HONGFA PCB POWER RELAY 3VDC 3A 1CO HF32FA/003-ZS2 1C - Single Pole Changeover 3VDC 450mW 3.9 3AMP 2.25 0.15 20 x (1�10%)
HF32FA005ZS2 HONGFA PCB POWER RELAY 5VDC 3A 1CO HF32FA/005-ZS2 1C - Single Pole Changeover 5VDC 450mW 6.5 3AMP 3.75 0.25 55 x (1�10%)
HF32FA006ZS2 HONGFA PCB POWER RELAY 6VDC 3A 1CO HF32FA/006-ZS2 1C - Single Pole Changeover 6VDC 450mW 7.8 3AMP 4.5 0.3 80 x (1�10%)
HF32FA009ZS2 HONGFA PCB POWER RELAY 9VDC 3A 1CO HF32FA/009-ZS2 1C - Single Pole Changeover 9VDC 450mW 11.7 3AMP 6.75 0.45 180 x (1�10%)
HF32FA012ZS2 HONGFA PCB POWER RELAY 12VDC 3A 1CO HF32FA/012-ZS2 1C - Single Pole Changeover 12VDC 450mW 15.6 3AMP 9 0.6 320 x (1�10%)
HF32FA018ZS2 HONGFA PCB POWER RELAY 18VDC 3A 1CO HF32FA/018-ZS2 1C - Single Pole Changeover 18VDC 450mW 23.4 3AMP 13.5 0.901 720 x (1�10%)
HF32FA024ZS2 HONGFA PCB POWER RELAY 24VDC 3A 1CO HF32FA/024-ZS2 1C - Single Pole Changeover 24VDC 450mW 31.2 3AMP 18 1.2 1280 x (1�10%)
HF32FA048ZS2 HONGFA PCB POWER RELAY 48VDC 3A 1CO HF32FA/048-ZS2 1C - Single Pole Changeover 48VDC 450mW 62.4 3AMP 36 2.4 5120 x (1�10%)
