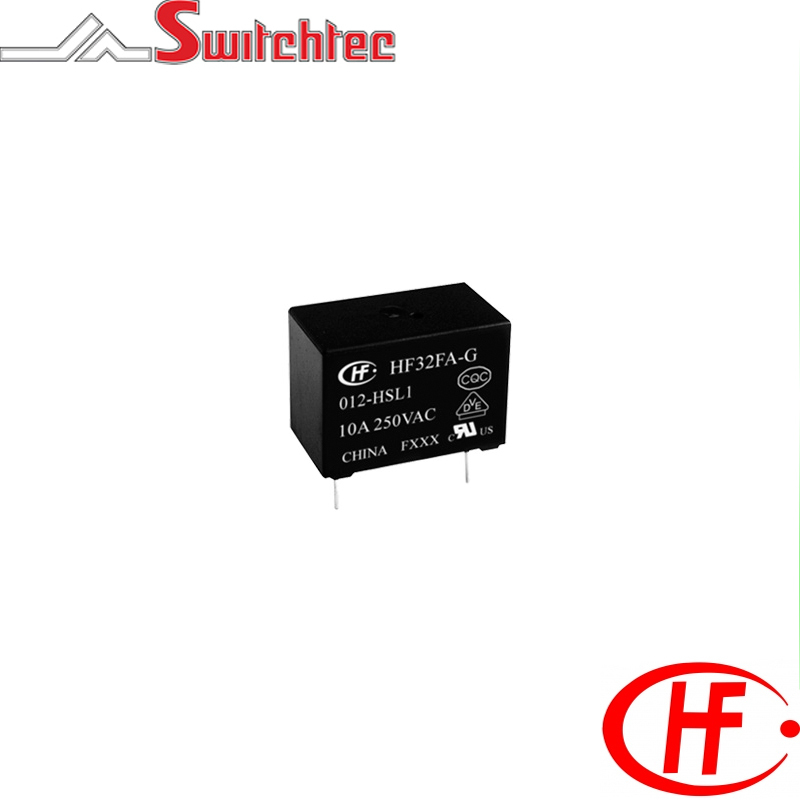

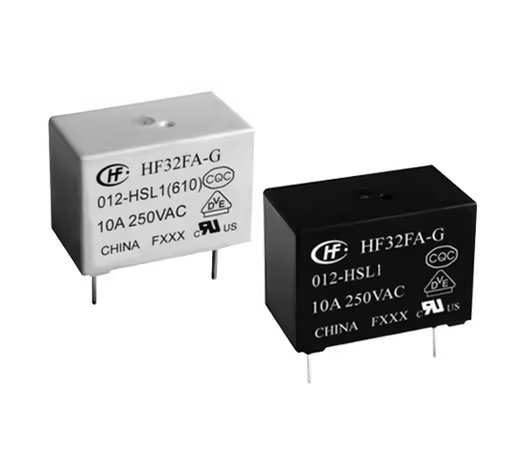

Sensitive Coil, Type 2 Termination

Sensitive Coil, Type 2 Termination

No detailed description is available for this product.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF32FAG003HSL2 HONGFA PCB POWER RELAY 3VDC 10A 1NO HF32FA-G/003-HSL2 1A - Single Pole Normally Open 3VDC 230mW 3.9 10AMP 2.25 0.15 20 x (1�10%)
HF32FAG005HSL2 HONGFA PCB POWER RELAY 5VDC 10A 1NO HF32FA-G/005-HSL2 1A - Single Pole Normally Open 5VDC 230mW 6.5 10AMP 3.75 0.25 55 x (1�10%)
HF32FAG006HSL2 HONGFA PCB POWER RELAY 6VDC 10A 1NO HF32FA-G/006-HSL2 1A - Single Pole Normally Open 6VDC 230mW 7.8 10AMP 4.5 0.3 80 x (1�10%)
HF32FAG009HSL2 HONGFA PCB POWER RELAY 9VDC 10A 1NO HF32FA-G/009-HSL2 1A - Single Pole Normally Open 9VDC 230mW 11.7 10AMP 6.75 0.45 180 x (1�10%)
HF32FAG012HSL2 HONGFA PCB POWER RELAY 12VDC 10A 1NO HF32FA-G/012-HSL2 1A - Single Pole Normally Open 12VDC 230mW 15.6 10AMP 9 0.6 320 x (1�10%)
HF32FAG018HSL2 HONGFA PCB POWER RELAY 18VDC 10A 1NO HF32FA-G/018-HSL2 1A - Single Pole Normally Open 18VDC 230mW 23.4 10AMP 13.5 0.9 720 x (1�10%)
HF32FAG024HSL2 HONGFA PCB POWER RELAY 24VDC 10A 1NO HF32FA-G/024-HSL2 1A - Single Pole Normally Open 24VDC 230mW 31.2 10AMP 18 1.2 1280 x (1�10%)
HF32FAG048HSL2 HONGFA PCB POWER RELAY 48VDC 10A 1NO HF32FA-G/048-HSL2 1A - Single Pole Normally Open 48VDC 230mW 62.4 10AMP 36 2.4 5120 x (1�10%)
