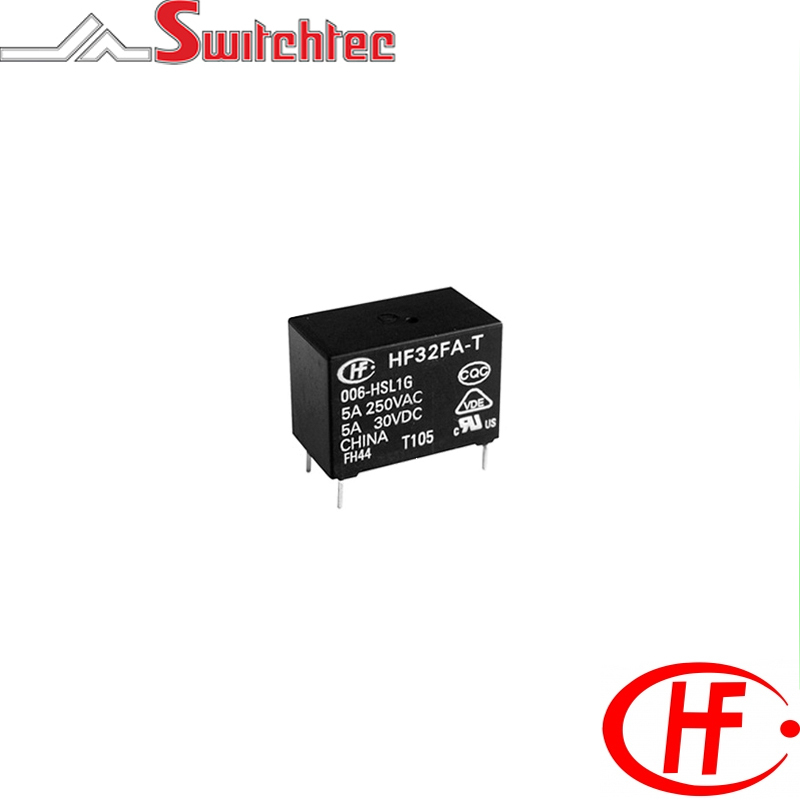

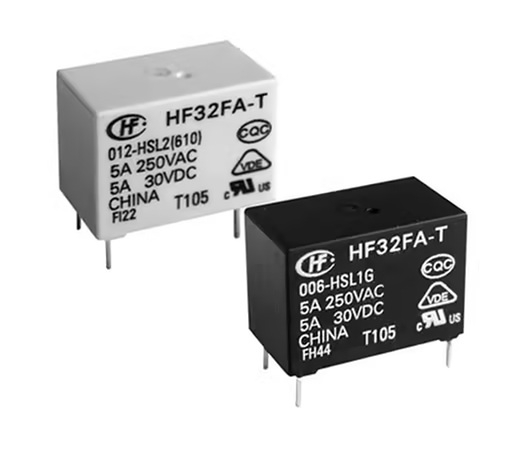

Sensitive Coil, Type 1 Termination

Descriptions

5A switching capability
High temperature: 105C
1 Form A contact meets VDE 0700, 0631
Sensititive Coils 200mW
Wash tight
Creepage/Clearance distance >8mm
5Kv Dielectric strenght (between coils and contacts)
Contact material AgNi
Gold plated contacts avilable (min switching voltage 5VDC 10mA)
RoHS compliant
Safety approvals UL/CUR & VDE

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Price
HF32FAT003HSL1	HONGFA PCB POWER RELAY 3VDC 5A 1NO HF32FA-T/003-HSL1	Please login to see prices.
HF32FAT005HSL1	HONGFA PCB POWER RELAY 5VDC 5A 1NO HF32FA-T/005-HSL1	Please login to see prices.
HF32FAT006HSL1	HONGFA PCB POWER RELAY 6VDC 5A 1NO HF32FA-T/006-HSL1	Please login to see prices.
HF32FAT009HSL1	HONGFA PCB POWER RELAY 9VDC 5A 1NO HF32FA-T/009-HSL1	Please login to see prices.
HF32FAT012HSL1	HONGFA PCB POWER RELAY 12VDC 5A 1NO HF32FA-T/012-HSL1	Please login to see prices.
HF32FAT018HSL1	HONGFA PCB POWER RELAY 18VDC 5A 1NO HF32FA-T/018-HSL1	Please login to see prices.
HF32FAT024HSL1	HONGFA PCB POWER RELAY 24VDC 5A 1NO HF32FA-T/024-HSL1	Please login to see prices.
HF32FAT048HSL1	HONGFA PCB POWER RELAY 48VDC 5A 1NO HF32FA-T/048-HSL1	Please login to see prices.
