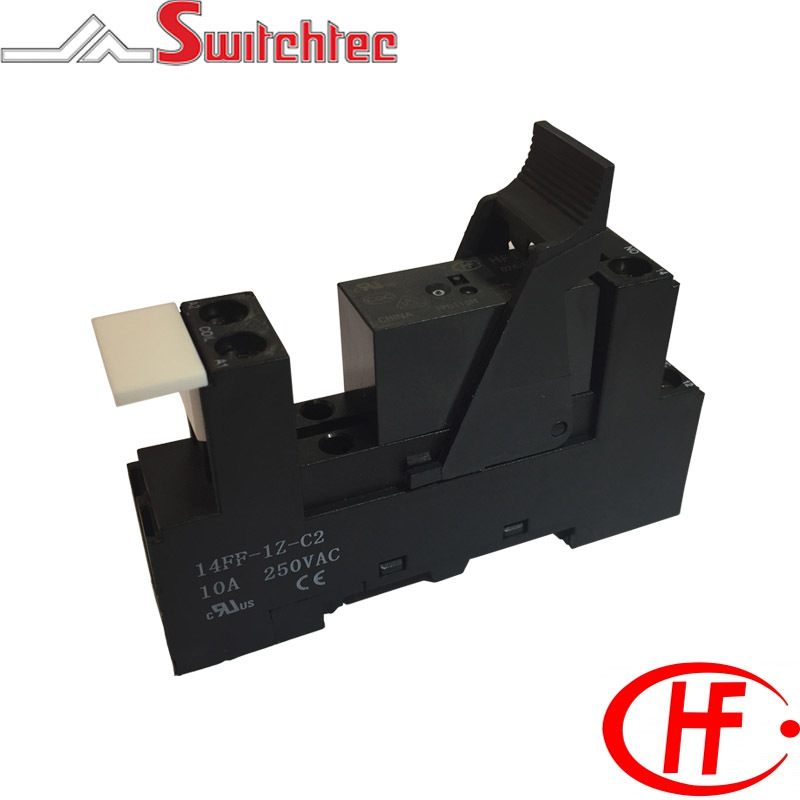

TRM Series - 10 Amp Single Pole Relay Interface Module

TRM Series - 10 Amp Single Pole Relay Interface Module

  • Change Over Contacts
  • Supplied complete, Relay, Socket, Ejector Clip and Identification Label
  • 1 Part Number for simple ordering
  • Sensitive 250mW DC Coils
  • 35mm Din Rail mounting
  • Compact 6mm Wide Design
  • Other Coil Voltages available on request
  • Approvals UL, CE and VDE



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Maximum Rated Switching Current Power Consumption Socket Type Relay Voltage Relay Type Coil Voltage Operating Temperature Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Dimensions (mm) Approvals Price
TRM-12 HONGFA PCB INTERFACE RELAY BMS RELAY 12VDC 1C - Single Pole Changeover 10AMP 250mW 14FF-1Z-C2 12VDC HF115FH0121ZS3AF 12VDC -40 to +85℃ 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 52 x 75 x 15.8 CE, UL, VDE
TRM-24 HONGFA PCB INTERFACE RELAY BMS RELAY 24VDC 1C - Single Pole Changeover 10AMP 250mW 14FF-1Z-C2 24VDC HF115FH0241ZS3AF 24VDC -40 to +85℃ 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 52 x 75 x 15.8 CE, UL, VDE
