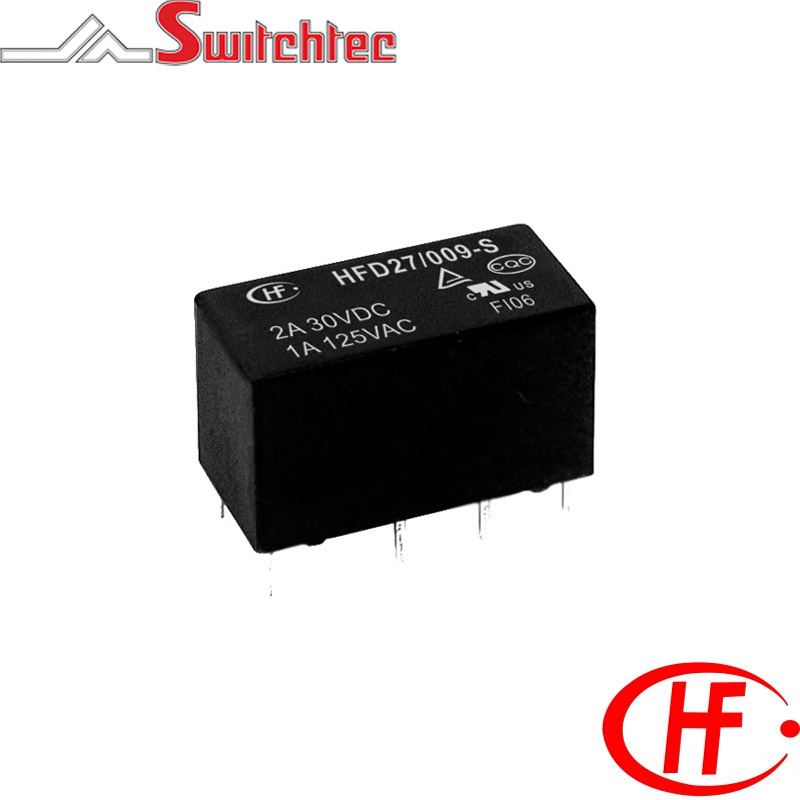

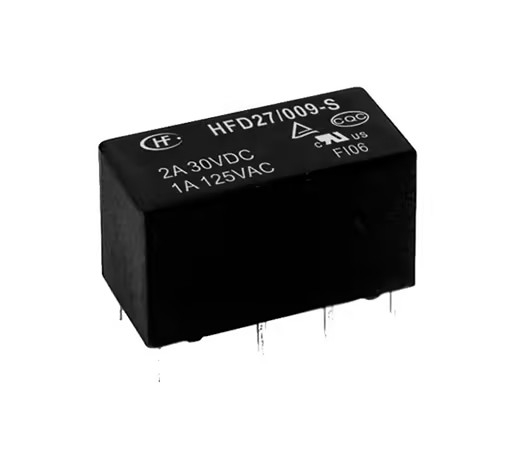

Standard 280mW to 580mW 2 Amp

Standard 280mW to 580mW 2 Amp

  • 2 Amp switching capability
  • 2 Form C configuration
  • High switching capacity 125VA/60W
  • Bifurcated contacts
  • Standard coil version
  • Expoxy sealed for automatic wave soldering and cleaning
  • Contact Material AgNi + Au plated
  • RoHS Compliant
  • Matching 16 pin IC socket
  • Approvals UL/CUR & TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HFD27003M HONGFA PCB SIGNAL RELAY 3VDC 2A 2CO HFD27/003-M 2C - Double Pole Changeover 3VDC 280 - 580mW 4.5 2AMP 2.25 0.3 30 x (1�10%)
HFD27005M HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD27/005-M 2C - Double Pole Changeover 5VDC 280 - 580mW 8 2AMP 3.75 0.5 90 x (1�10%)
HFD27006M HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD27/F006-M 2C - Double Pole Changeover 6VDC 280 - 580mW 10 2AMP 4.5 0.6 130 x (1�10%)
HFD27009M HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD27/009-M 2C - Double Pole Changeover 9VDC 280 - 580mW 14.5 2AMP 6.8 0.9 280 x (1�10%)
HFD27012M HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD27/012-M 2C - Double Pole Changeover 12VDC 280 - 580mW 18.5 2AMP 9 1.2 450 x (1�10%)
HFD27015M HONGFA PCB SIGNAL RELAY 15VDC 2A 2CO HFD27/015-M 2C - Double Pole Changeover 15VDC 280 - 580mW 22 2AMP 11.3 1.5 625 x (1�10%)
HFD27024M HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD27/024-M 2C - Double Pole Changeover 24VDC 280 - 580mW 35.5 2AMP 18 2.4 1600 x (1�10%)
HFD27048M HONGFA PCB SIGNAL RELAY 48VDC 2A 2CO HFD27/048-M 2C - Double Pole Changeover 48VDC 280 - 580mW 56 2AMP 36 4.8 4000 x (1�10%)
