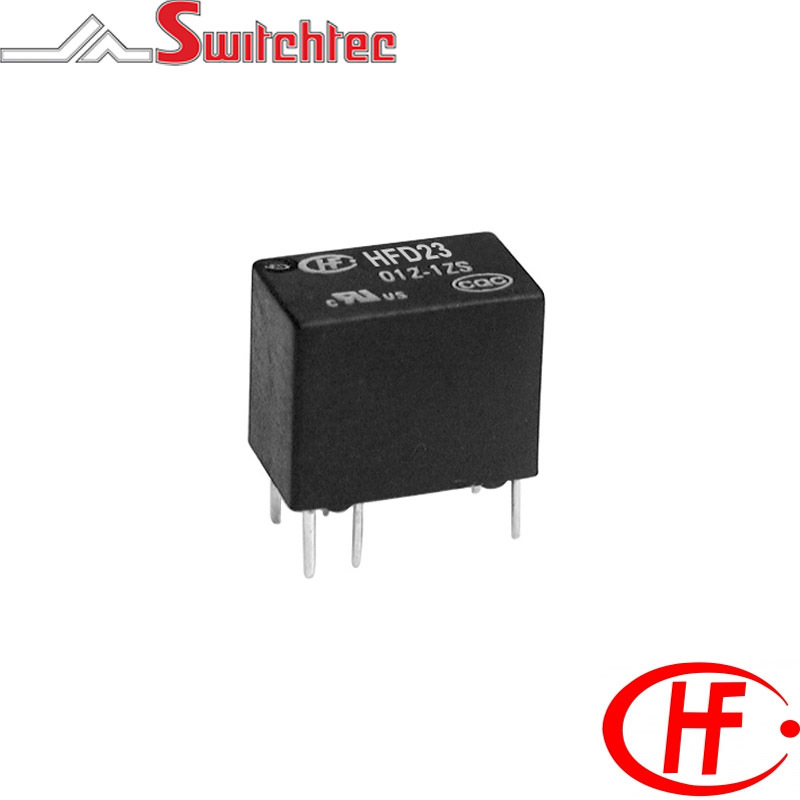

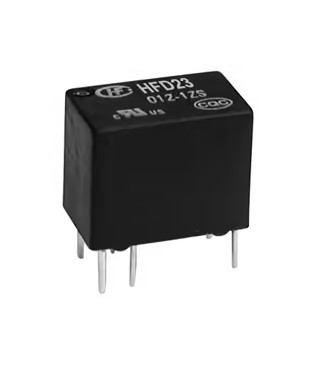

Standard 200mW 2 Amp

Standard 200mW 2 Amp

  • 2 Amp switching capability
  • 1 Form C configuration
  • Fully Sealed
  • Wash tight type
  • Standard 200mW Coil
  • Contact material AgNi + Au plated
  • RoHS Compliant
  • Approvals UL/cUL & CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HFD23001.51ZP HONGFA PCB SIGNAL RELAY 1.5VDC 2A SPCO HFD23/001.5-1ZP 1C - Single Pole Changeover 1.5VDC 200mW 2.25 2AMP 1.2 0.15 11.3 x (1�10%)
HFD230031ZP HONGFA PCB SIGNAL RELAY 3VDC 2A SPCO HFD23/003-1ZP 1C - Single Pole Changeover 3VDC 200mW 4.5 2AMP 2.4 0.3 45 x (1�10%)
HFD230051ZP HONGFA PCB SIGNAL RELAY 5VDC 2A SPCO HFD23/005-1ZP 1C - Single Pole Changeover 5VDC 200mW 7.5 2AMP 4 0.5 125 x (1�10%)
HFD230061ZP HONGFA PCB SIGNAL RELAY 6VDC 2A SPCO HFD23/006-1ZP 1C - Single Pole Changeover 6VDC 200mW 9 2AMP 4.8 0.6 180 x (1�10%)
HFD230091ZP HONGFA PCB SIGNAL RELAY 9VDC 2A SPCO HFD23/009-1ZP 1C - Single Pole Changeover 9VDC 200mW 13.5 2AMP 7.2 0.9 405 x (1�10%)
HFD230121ZP HONGFA PCB SIGNAL RELAY 12VDC 2A SPCO HFD23/012-1ZP 1C - Single Pole Changeover 12VDC 200mW 18 2AMP 9.6 1.2 720 x (1�10%)
HFD230241ZP HONGFA PCB SIGNAL RELAY 12VDC 2A SPCO HFD23/024-1ZP 1C - Single Pole Changeover 24VDC 200mW 36 2AMP 19.2 2.4 2880 x (1�10%)
