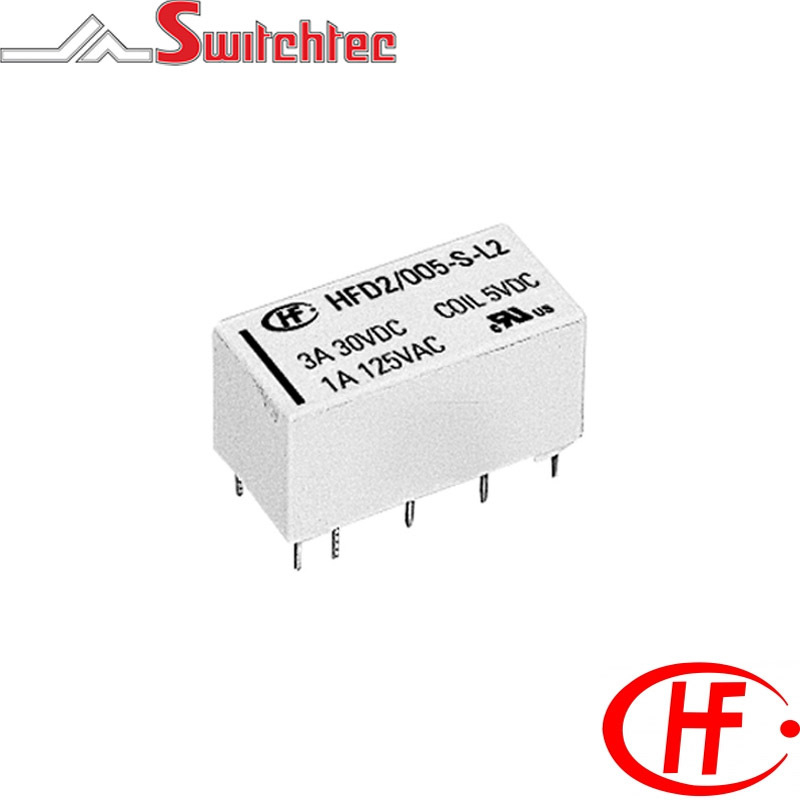

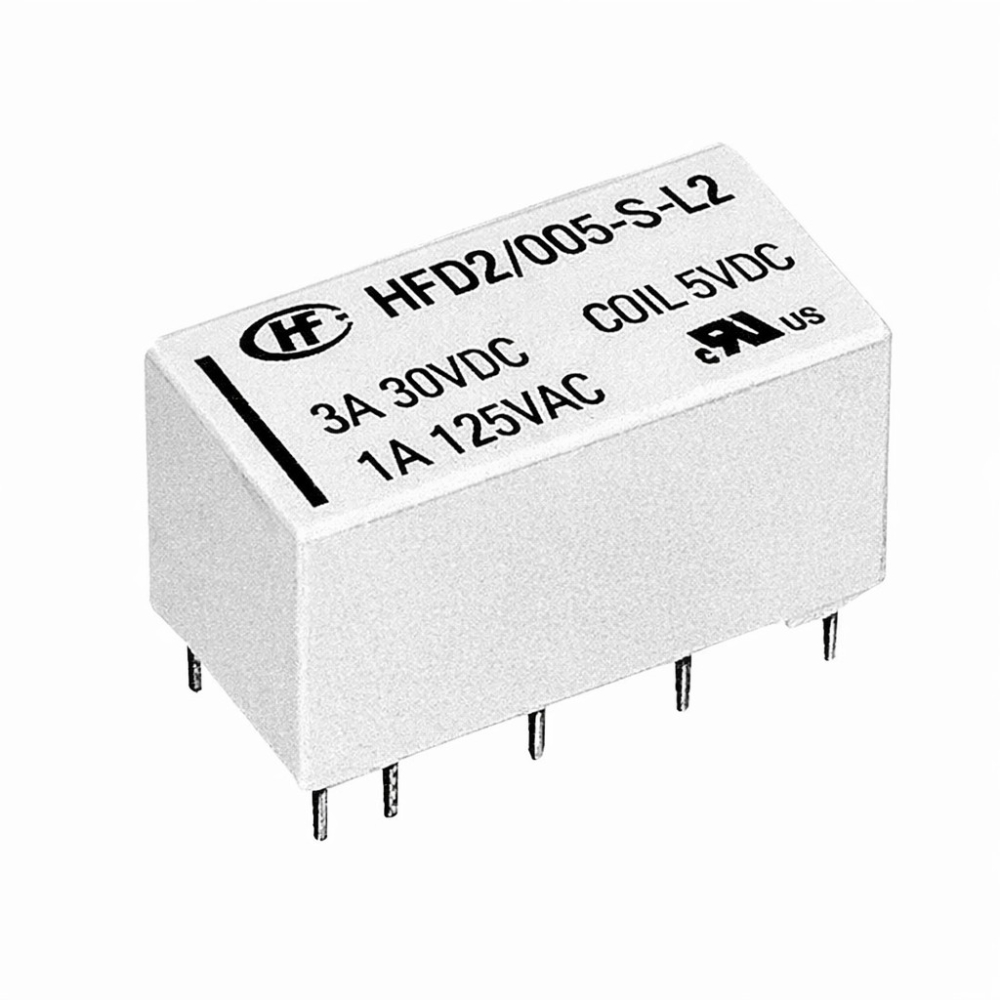

Single Side Stable (Standard) 200mW 1 Amp

Single Side Stable (Standard) 200mW 1 Amp

  • 1A 125VAC / 2A 30VDC contact rating
  • 2 pole c/o contacts
  • 1 & 2 Coil Latching versions
  • Standard version
  • Fully sealed
  • Contact Material AgPd60/Ag – AuAg8, others available upon request
  • Bifurcated contacts
  • RoHS Compliant
  • Approvals UL/CSA



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HFD2003M HONGFA PCB SIGNAL RELAY 3VDC 2A 2CO HFD2/003-S 2C - Double Pole Changeover 3VDC 200mW 6 3AMP 2.3 0.3 45 x (1�10%)
HFD2005M HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD2/005-M 2C - Double Pole Changeover 5VDC 200mW 10 3AMP 3.75 0.5 125 x (1�10%)
HFD2006M HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD2/005-M 2C - Double Pole Changeover 6VDC 200mW 12 3AMP 4.5 0.6 180 x (1�10%)
HFD2009M HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD2/009-M 2C - Double Pole Changeover 9VDC 200mW 18 3AMP 6.75 0.9 405 x (1�10%)
HFD2012M HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD2/012-M 2C - Double Pole Changeover 12VDC 200mW 24 3AMP 9 1.2 720 x (1�10%)
HFD2015M HONGFA PCB SIGNAL RELAY 15VDC 2A 2CO HFD2/015-M 2C - Double Pole Changeover 15VDC 200mW 30 3AMP 11.25 1.5 1125 x (1�10%)
HFD2024M HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD2/024-M 2C - Double Pole Changeover 24VDC 200mW 48 3AMP 18 2.4 2880 x (1�10%)
HFD2048M HONGFA PCB SIGNAL RELAY 48VDC 2A 2CO HFD2/048-M 2C - Double Pole Changeover 48VDC 200mW 96 3AMP 36 4.8 11520 x (1�10%)
