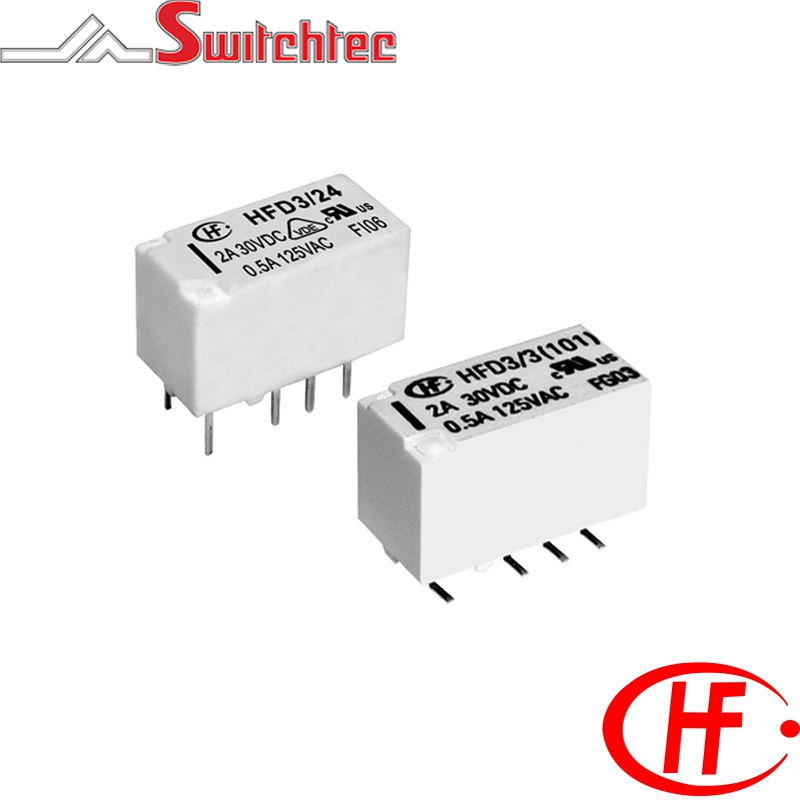

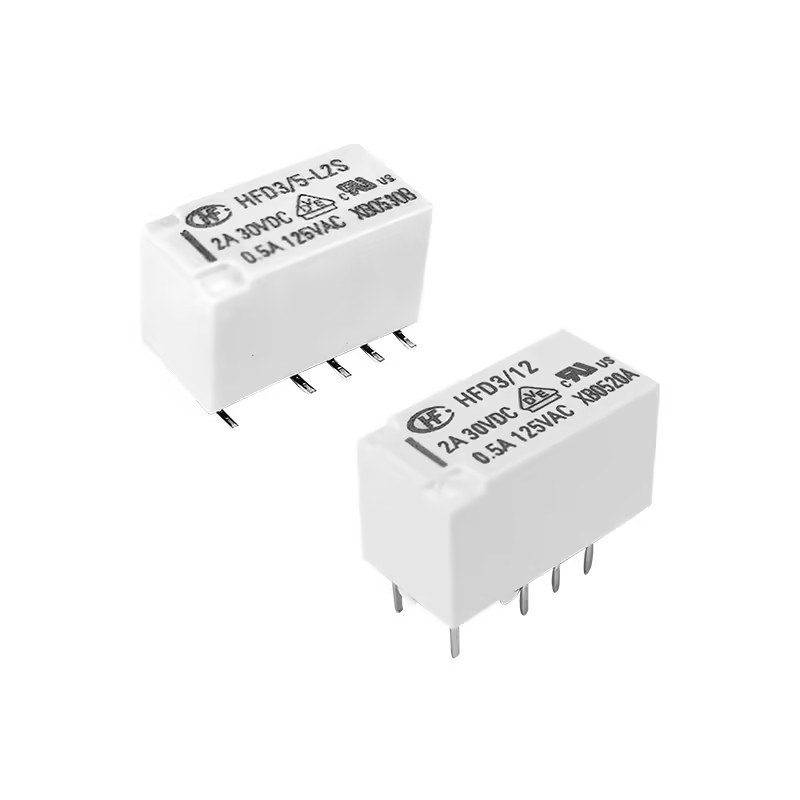

Single Side Stable 140-270mW 2 Amp

Single Side Stable 140-270mW 2 Amp

  • 0.5A 125VAC/3A 300VDC contact rating
  • 2 pole c/o contacts
  • Standard & Sensitive coil version
  • Fully sealed
  • Bifurcated contacts
  • Contact Material AgSnO2, other types available upon request
  • Dielectric strength 2KV between coil & contacts
  • Also available 3Kv Dielectric version HFD3-V
  • Surface mount versions available
  • Surge withstand voltage up to 2500VAC meets FCC Part 68 and Telecordia
  • RoHS Compliant
  • Tape packing reel information available with SMT versions
  • Meets EN60950/EN41003
  • Approvals UL/CSA & VDE



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HFD3-012 HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD3-12 2C - Double Pole Changeover 12VDC 140mW 18 2AMP 9 1.2 1028 x (1�10%)
HFD3-048 HONGFA PCB SIGNAL RELAY 48VDC 2A 2CO HFD3-048 2C - Double Pole Changeover 48VDC 270mW 57.6 2AMP 36 4.8 8533 x (1�10%)
HFD3-1.5 HONGFA PCB SIGNAL RELAY 1.5VDC 2A 2CO HFD3-1.5 2C - Double Pole Changeover 1.5VDC 140mW 2.2 2AMP 1.13 0.15 16 x (1�10%)
HFD3-2.4 HONGFA PCB SIGNAL RELAY 2.4VDC 2A 2CO HFD3-2.4 2C - Double Pole Changeover 2.4VDC 140mW 3.6 2AMP 1.8 0.24 41 x (1�10%)
HFD3-3 HONGFA PCB SIGNAL RELAY 3VDC 2A 2CO HFD3-3 2C - Double Pole Changeover 3VDC 140mW 4.5 2AMP 2.25 0.3 64.3 x (1�10%)
HFD3-5 HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD3-5 2C - Double Pole Changeover 5VDC 140mW 7.5 2AMP 3.75 0.5 178 x (1�10%)
HFD3-6 HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD3-6 2C - Double Pole Changeover 6VDC 140mW 9 2AMP 4.5 0.6 257 x (1�10%)
HFD3-9 HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD3-9 2C - Double Pole Changeover 9VDC 140mW 13.5 2AMP 6.75 0.9 579 x (1�10%)
