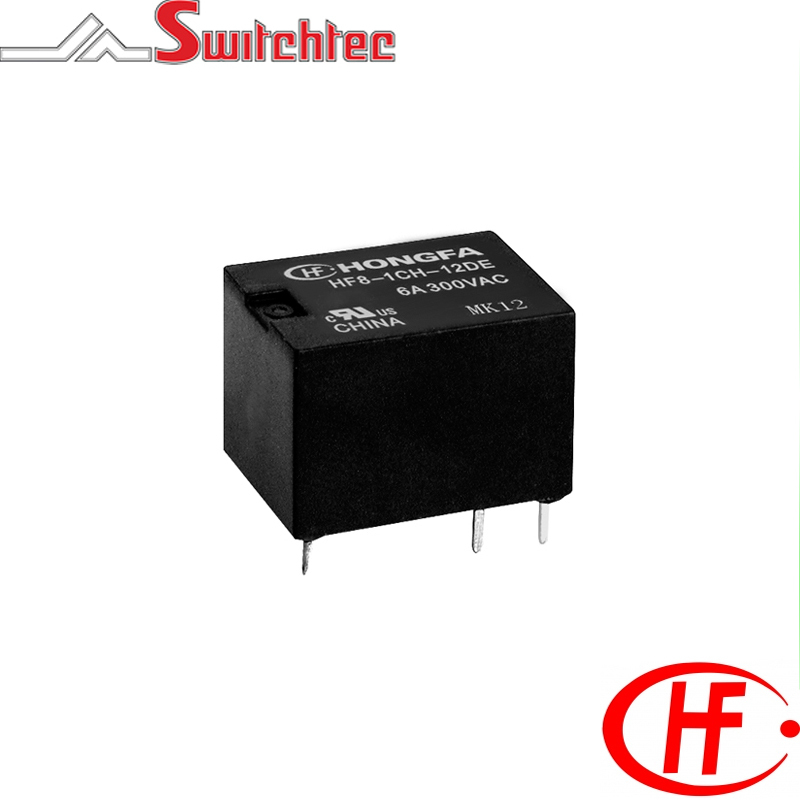

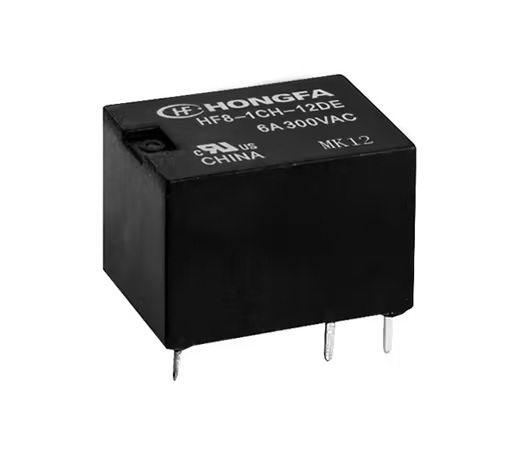

Sensitive Coil - 330mW

Sensitive Coil - 330mW

  • 10A switching capacity
  • 1 Form C configuration
  • Subminiature PCB layout
  • Sensitive coil version
  • Contact material AgCdO
  • RoHS compliant
  • Class F insulation as standard



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF8-1C003DSEF HONGFA PCB CUBE RELAY 3VDC 2A 1CO HF8-1C003-DSEF 1C - Sinle Pole Changeover 3VDC 330mW 3.9 2AMP 2.25 0.15 28 x (1�10%)
HF8-1C005DSEF HONGFA PCB CUBE RELAY 5VDC 2A 1CO HF8-1C005-DSEF 1C - Sinle Pole Changeover 5VDC 330mW 6.5 2AMP 3.75 0.25 80 x (1�10%)
HF8-1C006DSEF HONGFA PCB CUBE RELAY 6VDC 2A 1CO HF8-1C006-DSEF 1C - Sinle Pole Changeover 6VDC 330mW 7.8 2AMP 4.5 0.3 110 x (1�10%)
HF8-1C009DSEF HONGFA PCB CUBE RELAY 9VDC 2A 1CO HF8-1C009-DSEF 1C - Sinle Pole Changeover 9VDC 330mW 11.7 2AMP 6.75 0.45 250 x (1�10%)
HF8-1C012DSEF HONGFA PCB CUBE RELAY 12VDC 2A 1CO HF8-1C012-DSEF 1C - Sinle Pole Changeover 12VDC 330mW 15.6 2AMP 9 0.6 440 x (1�10%)
HF8-1C018DSEF HONGFA PCB CUBE RELAY 18VDC 2A 1CO HF8-1C018-DSEF 1C - Sinle Pole Changeover 18VDC 330mW 23.4 2AMP 13.5 0.9 1000 x (1�10%)
HF8-1C024DSEF HONGFA PCB CUBE RELAY 24VDC 2A 1CO HF8-1C024-DSEF 1C - Sinle Pole Changeover 24VDC 330mW 31.2 2AMP 18 1.2 1780 x (1�10%)
HF8-1C048DSEF HONGFA PCB CUBE RELAY 48VDC 2A 1CO HF8-1C048-DSEF 1C - Sinle Pole Changeover 48VDC 330mW 62.4 2AMP 36 2.4 7120 x (1�10%)
