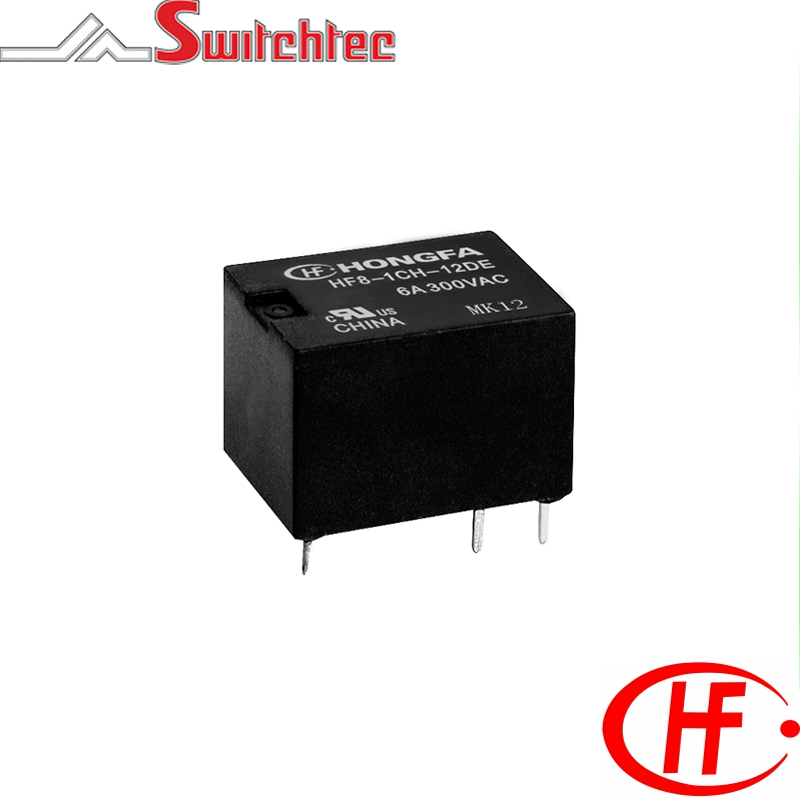

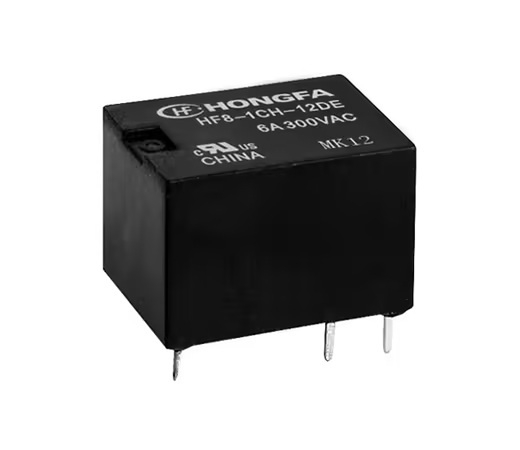

Sensitive Coil - 330mW

Sensitive Coil - 330mW

  • 10A switching capacity
  • 1 Form A configuration
  • Subminiature PCB layout
  • Sensitive coil version
  • Contact material AgCdO
  • RoHS compliant
  • Class F insulation as standard



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF8-1A003DSEF HONGFA PCB CUBE RELAY 3VDC 3A 1NO HF8-1A003-DSEF 1A - Single Pole Normally Open 3VDC 330mW 3.9 3AMP 2.25 0.15 28 x (1�10%)
HF8-1A005DSEF HONGFA PCB CUBE RELAY 5VDC 3A 1NO HF8-1A005-DSEF 1A - Single Pole Normally Open 5VDC 330mW 6.5 3AMP 3.75 0.25 80 x (1�10%)
HF8-1A006DSEF HONGFA PCB CUBE RELAY 6VDC 3A 1NO HF8-1A006-DSEF 1A - Single Pole Normally Open 6VDC 330mW 7.8 3AMP 4.5 0.3 110 x (1�10%)
HF8-1A009DSEF HONGFA PCB CUBE RELAY 9VDC 3A 1NO HF8-1A009-DSEF 1A - Single Pole Normally Open 9VDC 330mW 11.7 3AMP 6.75 0.45 250 x (1�10%)
HF8-1A012DSEF HONGFA PCB CUBE RELAY 12VDC 3A 1NO HF8-1A012-DSEF 1A - Single Pole Normally Open 12VDC 330mW 15.6 3AMP 9 0.6 440 x (1�10%)
HF8-1A018DSEF HONGFA PCB CUBE RELAY 18VDC 3A 1NO HF8-1A018-DSEF 1A - Single Pole Normally Open 18VDC 330mW 23.4 3AMP 13.5 0.9 1000 x (1�10%)
HF8-1A024DSEF HONGFA PCB CUBE RELAY 24VDC 3A 1NO HF8-1A024-DSEF 1A - Single Pole Normally Open 24VDC 330mW 31.2 3AMP 18 1.2 1780 x (1�10%)
HF8-1A048DSEF HONGFA PCB CUBE RELAY 48VDC 3A 1NO HF8-1A048-DSEF 1A - Single Pole Normally Open 48VDC 330mW 62.4 3AMP 36 2.4 7120 x (1�10%)
