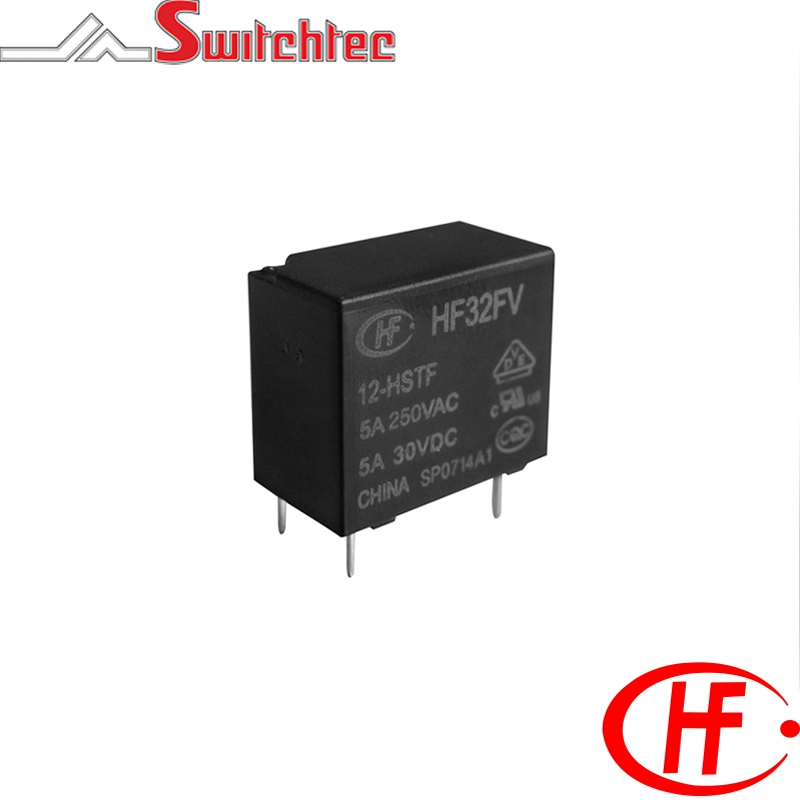

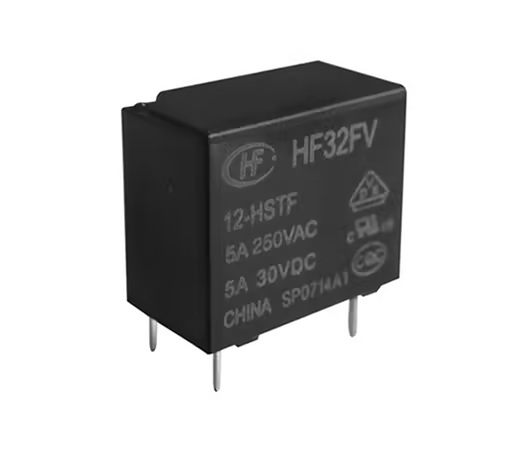

Sensitive Coil

Sensitive Coil

  • 5A switching capability
  • Creepage distance 6.5mm
  • 4Kv Dielectric strength (between coils andcontacts)
  • 1 Form A configuration
  • Plastic sealed and flux proofed versions available
  • RoHS compliant
  • Safety approvals UL/CQC & VDE



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF32FV003HSLTF HONGFA PCB POWER RELAY 3VDC 5A 1NO HF32FV/003-HSLTF 1A - Single Pole Normally Open 3VDC 200mW 4.5 5AMP 2.25 0.15 45 x (1�10%)
HF32FV005HSLTF HONGFA PCB POWER RELAY 5VDC 5A 1NO HF32FV/005-HSLTF 1A - Single Pole Normally Open 5VDC 200mW 7.5 5AMP 3.75 0.25 125 x (1�10%)
HF32FV006HSLTF HONGFA PCB POWER RELAY 6VDC 5A 1NO HF32FV/006-HSLTF 1A - Single Pole Normally Open 6VDC 200mW 9 5AMP 4.5 0.3 180 x (1�10%)
HF32FV009HSLTF HONGFA PCB POWER RELAY 9VDC 5A 1NO HF32FV/009-HSLTF 1A - Single Pole Normally Open 9VDC 200mW 13.5 5AMP 6.75 0.45 400 x (1�10%)
HF32FV012HSLTF HONGFA PCB POWER RELAY 12VDC 5A 1NO HF32FV/012-HSLTF 1A - Single Pole Normally Open 12VDC 200mW 18 5AMP 9 0.6 24720 x (1�10%)
HF32FV018HSLTF HONGFA PCB POWER RELAY 18VDC 5A 1NO HF32FV/018-HSLTF 1A - Single Pole Normally Open 18VDC 200mW 27 5AMP 13.5 0.9 1600 x (1�10%)
HF32FV024HSLTF HONGFA PCB POWER RELAY 14VDC 5A 1NO HF32FV/024-HSLTF 1A - Single Pole Normally Open 24VDC 200mW 36 5AMP 18 1.2 2800 x (1�10%)
HF32FV048HSLTF HONGFA PCB POWER RELAY 48VDC 5A 1NO HF32FV/048-HSLTF 1A - Single Pole Normally Open 48VDC 200mW 72 5AMP 36 2.4 11520 x (1�10%)
