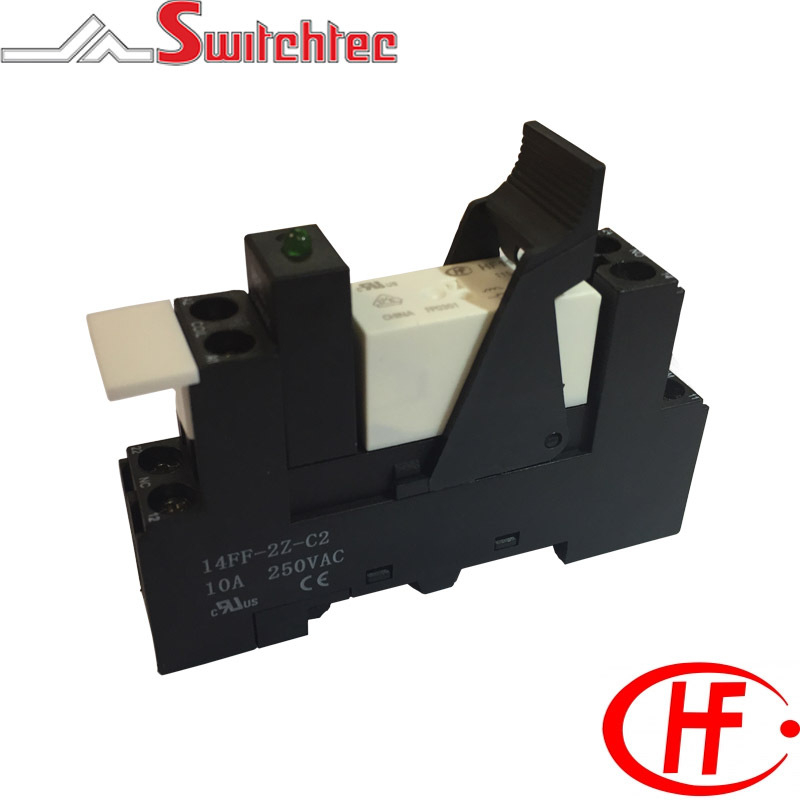

8 Amp Double Pole - Type 3

8 Amp Double Pole - Type 3

  • Change Over Contacts
  • Supplied complete, Relay, LED, Socket, Ejector Clip and Identification Label
  • 1 Part Number for simple ordering
  • AC & DC Coils
  • Supply status LED as standard
  • 35mm Din Rail mounting
  • 2 Socket types for ease of installation
  • 8A version
  • Other Coil Voltages available on request



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Coil Voltage Retainer Clip Module Type Maximum Rated Switching Current Additional Features Socket Type Relay Voltage Relay Type Contact Arrangement Operating Temperature Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Dimensions (mm) Approvals Price
2RM-110A-3 HONGFA RELAY INTERFACE MODULE 2CO 110VAC 110VAC 14F-ERC-1 HF-EN 8AMP Contact Separation Socket 14FF-2Z-C2 110VAC HF115FA1152ZS4AF 2C - Double Pole Changeover -40 to +85℃ 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 65 x 76 x 15.8 CE, UL
2RM-12-3 HONGFA RELAY INTERFACE MODULE 2CO 12VDC 12VDC 14F-ERC-1 HF-EL 8AMP Contact Separation Socket 14FF-2Z-C2 12VDC HF115F0122ZS4AF 2C - Double Pole Changeover -40 to +85℃ 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 65 x 76 x 15.8 CE, UL
2RM-24-3 HONGFA RELAY INTERFACE MODULE 2CO 24VDC 24VDC 14F-ERC-1 HF-EL 8AMP Contact Separation Socket 14FF-2Z-C2 24VDC HF115F0242ZS4AF 2C - Double Pole Changeover -40 to +85℃ 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 65 x 76 x 15.8 CE, UL
2RM-240A-3 HONGFA RELAY INTERFACE MODULE 2CO 240VAC 230VAC 14F-ERC-1 HF-EN 8AMP Contact Separation Socket 14FF-2Z-C2 230VAC HF115FA2302ZS4AF 2C - Double Pole Changeover -40 to +85℃ 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 65 x 76 x 15.8 CE, UL
2RM-24A-3 HONGFA RELAY INTERFACE MODULE 2CO 24VAC 24VAC 14F-ERC-1 HF-EL 8AMP Contact Separation Socket 14FF-2Z-C2 24VAC HF115FA0242ZS4AF 2C - Double Pole Changeover -40 to +85℃ 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 65 x 76 x 15.8 CE, UL
