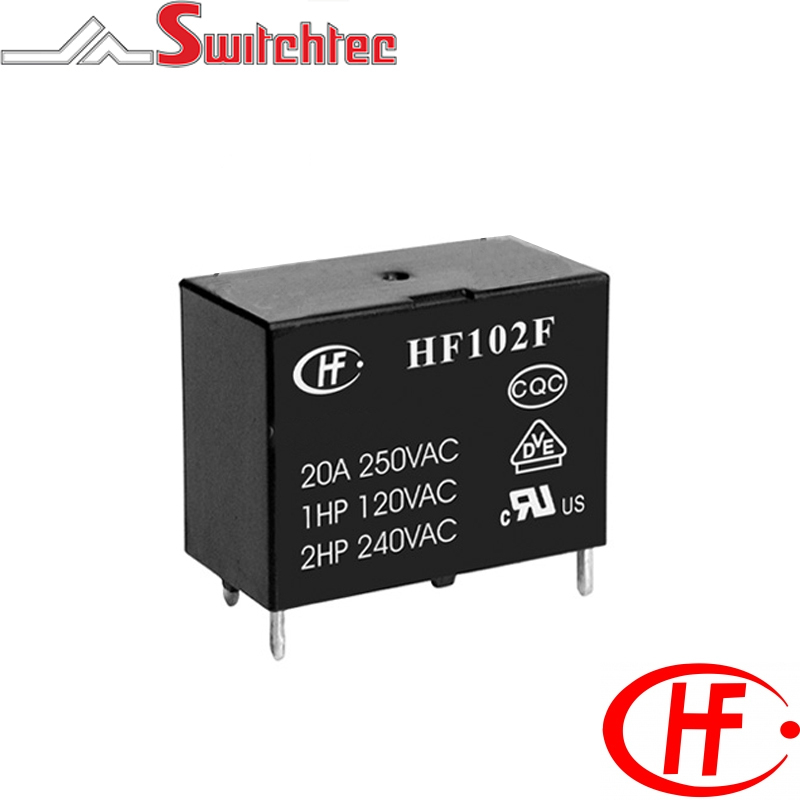

20 Amp 1 Pole Normally Open Relay PCB Terminals

20 Amp 1 Pole Normally Open Relay PCB Terminals

  • 20 Amp switching capacity
  • 1 Form A contact
  • 900mW Coil
  • 4.5KV dielectric strength (between coil and contacts)
  • Heavy load up to 5000VA
  • Ideal for motor switching
  • PCB & QC layouts
  • RoHS compliant
  • Approvals UL, VDE and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF102FT005 HONGFA PCB POWER RELAY 5VDC 20A 1NO HF102F/T-005 1A - Single Pole Normally Open 5VDC 900mW 6 20 AMP 3.5 0.5 27.8 x (1�10%)
HF102FT012 HONGFA PCB POWER RELAY 12VDC 20A 1NO HF102F/T-012 1A - Single Pole Normally Open 12VDC 900mW 14.4 20 AMP 8.4 1.2 160 x (1�10%)
HF102FT024 HONGFA PCB POWER RELAY 24VDC 20A 1NO HF102F/T-024 1A - Single Pole Normally Open 24VDC 900mW 28.8 20 AMP 16.8 2.4 640 x (1�10%)
HF102FT048 HONGFA PCB POWER RELAY 48VDC 20A 1NO HF102F/T-048 1A - Single Pole Normally Open 48VDC 900mW 57.6 20 AMP 33.6 4.8 2560 x (1�10%)
