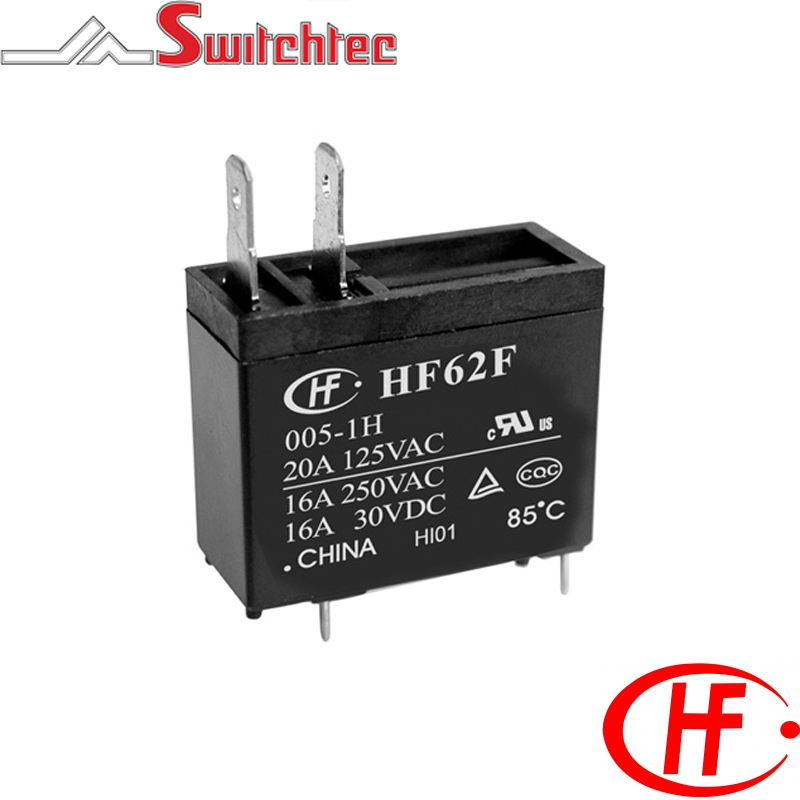

16 Amp 1 Pole Normally Open Relay PCB Terminals

16 Amp 1 Pole Normally Open Relay PCB Terminals

  • 16 Amp switching capacity
  • 1 Form A contact
  • 540mW Coil
  • 5KV dielectric strength (between coil and contacts)
  • 10kV impulse withstand voltage (between coil and contacts)
  • Creepage distance 8mm
  • PCB layout
  • RoHS compliant
  • Approvals UL, TUV and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF62F0051HTF HONGFA PCB POWER RELAY 5VDC 16A 1NO HF62F/005-1HTF 1A - Single Pole Normally Open 5VDC 540mW 6.5 16 AMP 4 0.5 47 x (1�10%)
HF62F0061HTF HONGFA PCB POWER RELAY 6VDC 16A 1NO HF62F/006-1HTF 1A - Single Pole Normally Open 6VDC 540mW 7.8 16 AMP 4.8 0.6 68 x (1�10%)
HF62F0091HTF HONGFA PCB POWER RELAY 9VDC 16A 1NO HF62F/009-1HTF 1A - Single Pole Normally Open 9VDC 540mW 11.7 16 AMP 7.2 0.9 155 x (1�10%)
HF62F0121HTF HONGFA PCB POWER RELAY 12VDC 16A 1NO HF62F/012-1HTF 1A - Single Pole Normally Open 12VDC 540mW 15.6 16 AMP 9.6 1.2 270 x (1�10%)
HF62F0181HTF HONGFA PCB POWER RELAY 18VDC 16A 1NO HF62F/018-1HTF 1A - Single Pole Normally Open 18VDC 540mW 23.4 16 AMP 14.4 1.8 620 x (1�10%)
HF62F0241HTF HONGFA PCB POWER RELAY 24VDC 16A 1NO HF62F/024-1HTF 1A - Single Pole Normally Open 24VDC 540mW 31.2 16 AMP 19.2 2.4 1100 x (1�10%)
HF62F0481HTF HONGFA PCB POWER RELAY 48VDC 16A 1NO HF62F/048-1HTF 1A - Single Pole Normally Open 48VDC 540mW 62.4 16 AMP 38.4 4.8 4400 x (1�10%)
