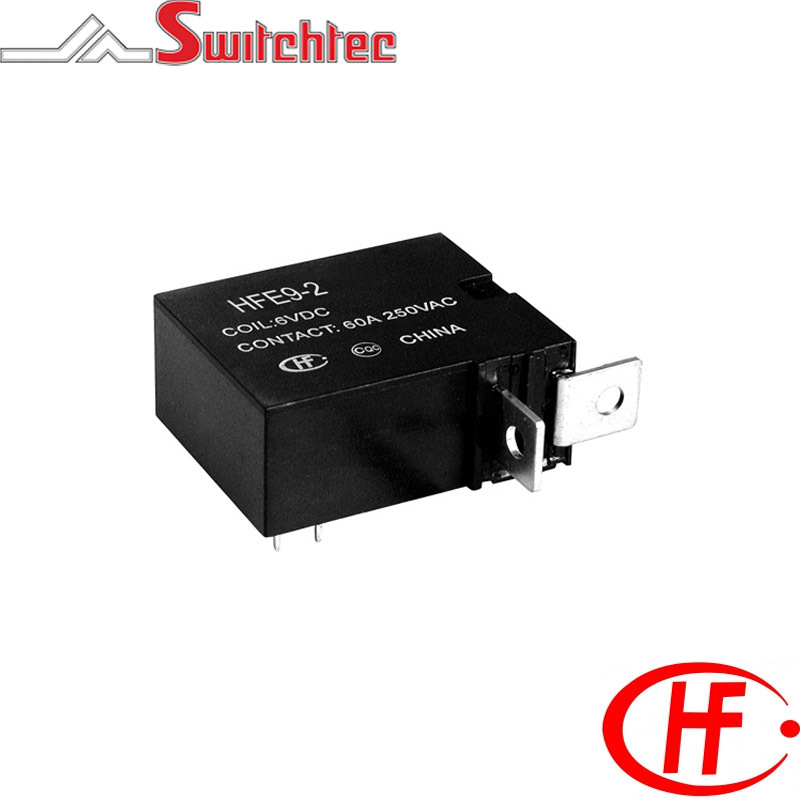

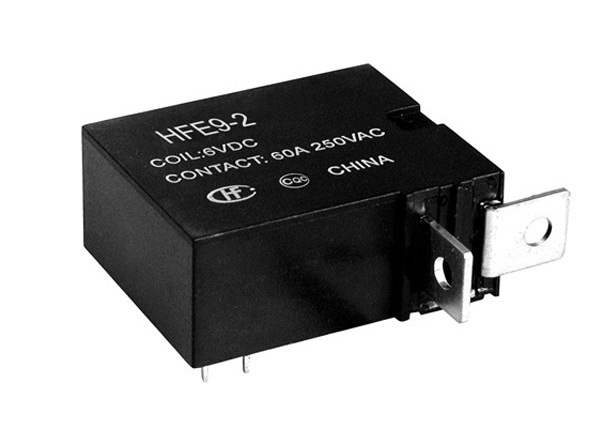

Double Coil Latching

Double Coil Latching



    • 60A switching capacity



    • 4Kv dielectric strength between coil and contacts



    • 1 Form B contact arrangement



    • Contact material AgSn02



    • Shunt’s available on request



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE9312DST HONGFA INDUSTRIAL RELAY 12VDC 60A 1NC HFE9-3/012-DST 1B - Single Pole Normally Closed 12VDC 2000mW 60AMP 8.4 72 + 72 x (1�10%) 50
HFE9324DST HONGFA INDUSTRIAL RELAY 24VDC 60A 1NC HFE9-3/024-DST 1B - Single Pole Normally Closed 24VDC 2000mW 60AMP 16.8 285 + 285 x (1�10%) 50
HFE9348DST HONGFA INDUSTRIAL RELAY 48VDC 60A 1NC HFE9-3/048-DST 1B - Single Pole Normally Closed 48VDC 2000mW 60AMP 33.6 1135 + 1135 x (1�10%) 50
HFE935DST HONGFA INDUSTRIAL RELAY 5VDC 60A 1NC HFE9-3/005-DST 1B - Single Pole Normally Closed 5VDC 2000mW 60AMP 3.5 12 + 12 x (1�10%) 50
HFE936DST HONGFA INDUSTRIAL RELAY 6VDC 60A 1NC HFE9-3/006-DST 1B - Single Pole Normally Closed 6VDC 2000mW 60AMP 4.2 17.5 + 17.5 x (1�10%) 50
HFE939DST HONGFA INDUSTRIAL RELAY 9VDC 60A 1NC HFE9-3/009-DST 1B - Single Pole Normally Closed 9VDC 2000mW 60AMP 6.3 40 + 40 x (1�10%) 50
