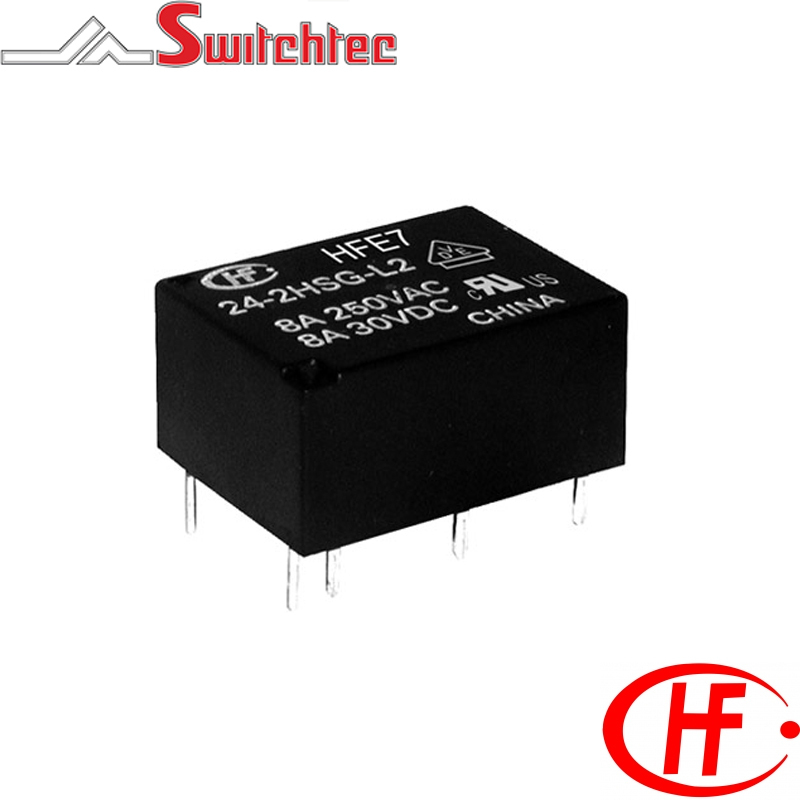

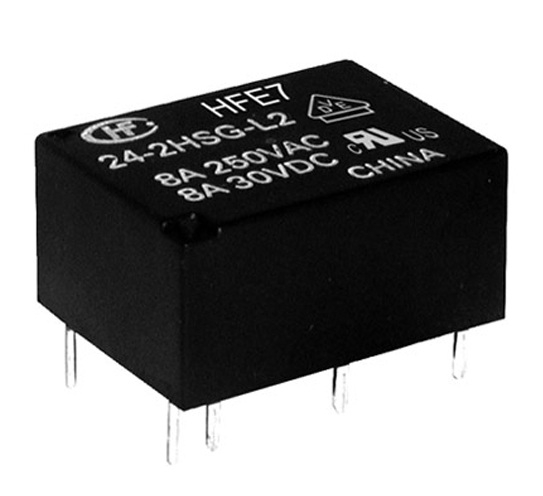

1 Coil Latching

1 Coil Latching



    • High switching capacity: 1A: 10A 250VAC / 8A: 30VDC / 2A: 8A 250VAC/30VDC



    • High sensitivity – 200mW



    • Single side stable and latching types available



    • 4Kv dielectric strength between coil and contacts



    • 1 Form B contact arrangement



    • Contact material AgNi. AgNi + Au available upon request



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Maximum Rated Switching Current Price
HFE70031DSL1 HONGFA LATCHING RELAY 3VDC 8A 1NC HFE7/003-1DS-L1 1B - Single Pole Normally Closed 3VDC 10 AMP
HFE70051DSL1 HONGFA LATCHING RELAY 5VDC 8A 1NC HFE7/005-1DS-L1 1B - Single Pole Normally Closed 5VDC 10 AMP
HFE70061DSL1 HONGFA LATCHING RELAY 6VDC 8A 1NC HFE7/006-1DS-L1 1B - Single Pole Normally Closed 6VDC 10 AMP
HFE70121DSL1 HONGFA LATCHING RELAY 12VDC 8A 1NC HFE7/012-1DS-L1 1B - Single Pole Normally Closed 12VDC 10 AMP
HFE70181DSL1 HONGFA LATCHING RELAY 18VDC 8A 1NC HFE7/018-1DS-L1 1B - Single Pole Normally Closed 18VDC 10 AMP
HFE70241DSL1 HONGFA LATCHING RELAY 24VDC 8A 1NC HFE7/024-1DS-L1 1B - Single Pole Normally Closed 24VDC 10 AMP
