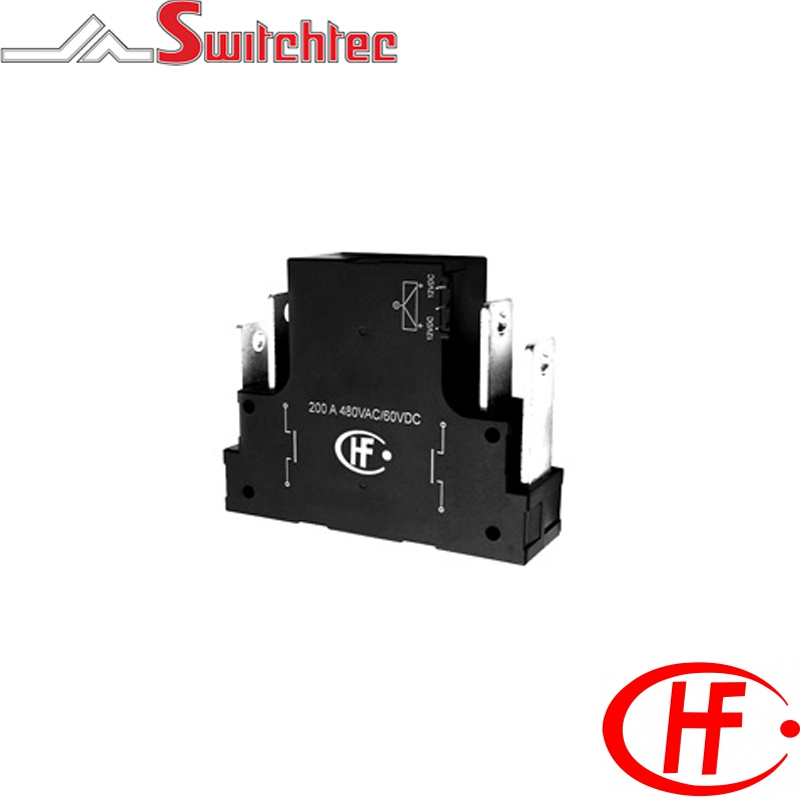

Double Coil Latching

Double Coil Latching



    • 200A 277VAC/28VDC contact ratings



    • 2 Form A contacts



    • 2 Coil latching version



    • H eavy load up to 55.4kVA



    • Contact material AgSn02In203. Contacts in AgCdO available upon request



    • 4Kvdielectric strength between coil and contacts



    • RoHS compliant



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HFE6B0122HT2 HONGFA LATCHING RELAY 12VDC 200A 2NO HFE6-B/012-2HT2 2A - Single Pole Normally Open 12VDC 24W 200AMP 9.6 6 + 6 x (1�10%) 200 150
HFE6B0242HT2 HONGFA LATCHING RELAY 24VDC 200A 2NO HFE6-B/024-2HT2 2A - Single Pole Normally Open 24VDC 24W 200AMP 19.2 24 + 24 x (1�10%) 200 150
HFE6B0482HT2 HONGFA LATCHING RELAY 48VDC 200A 2NO HFE6-B/048-2HT2 2A - Single Pole Normally Open 48VDC 24W 200AMP 38.4 95 + 95 x (1�10%) 200 150
