Positive Polarity

Positive Polarity

No detailed description is available for this product.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price

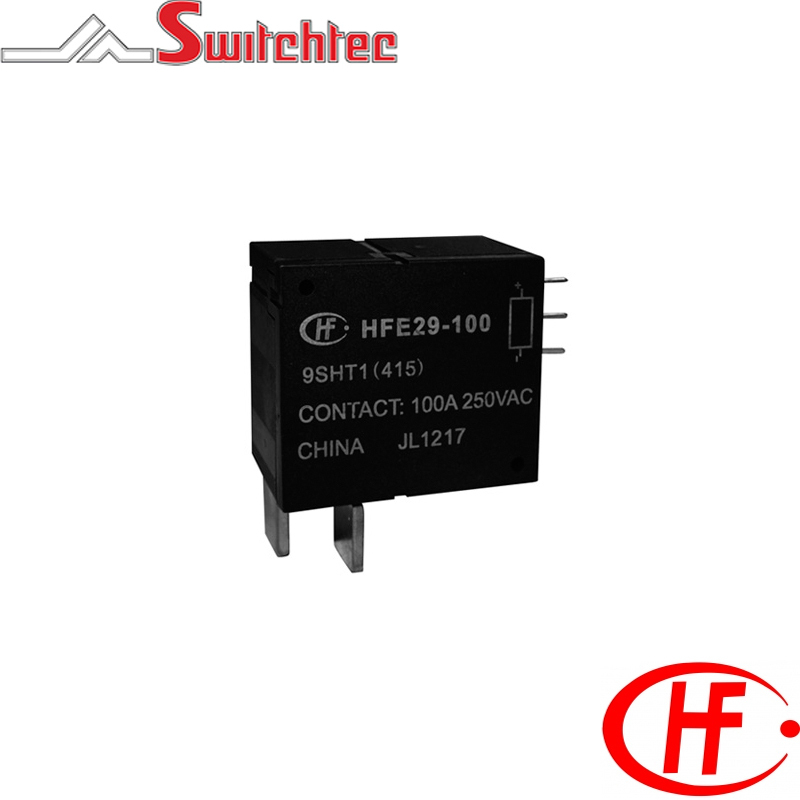

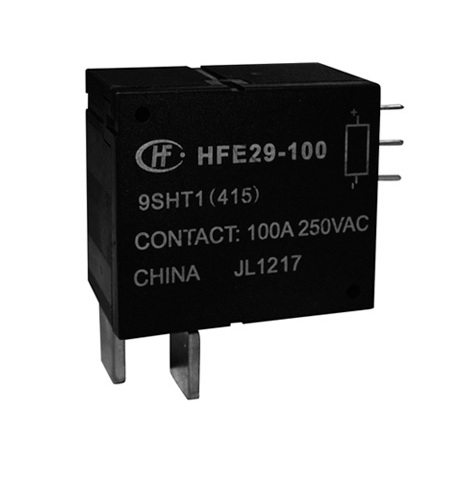

HFE2910012SHT1 HONGFA LATCHING RELAY 12VDC 120A 1NO HFE29-100/012-SHT-1 1A - Double Contact 1 Form A 12VDC 2.4W 100AMP 9.6 60 x (1�10%) 50
HFE2910024SHT1 HONGFA LATCHING RELAY 24VDC 120A 1NO HFE29-100/024-SHT-1 1A - Double Contact 1 Form A 24VDC 2.4W 100AMP 19.2 250 x (1�10%) 50
HFE2910048SHT1 HONGFA LATCHING RELAY 48VDC 120A 1NO HFE29-100/048-SHT-1 1A - Double Contact 1 Form A 48VDC 2.4W 100AMP 38.4 1000 x (1�10%) 50
HFE291006SHT1 HONGFA LATCHING RELAY 6VDC 120A 1NO HFE29-100/006-SHT-1 1A - Double Contact 1 Form A 6VDC 2.4W 100AMP 4.8 15 x (1�10%) 50
HFE291009SHT1 HONGFA LATCHING RELAY 9VDC 120A 1NO HFE29-100/009-SHT-1 1A - Double Contact 1 Form A 9VDC 2.4W 100AMP 7.2 34 x (1�10%) 50
