In Parallel With Relay's Shorter Edge

In Parallel With Relay's Shorter Edge

No detailed description is available for this product.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price

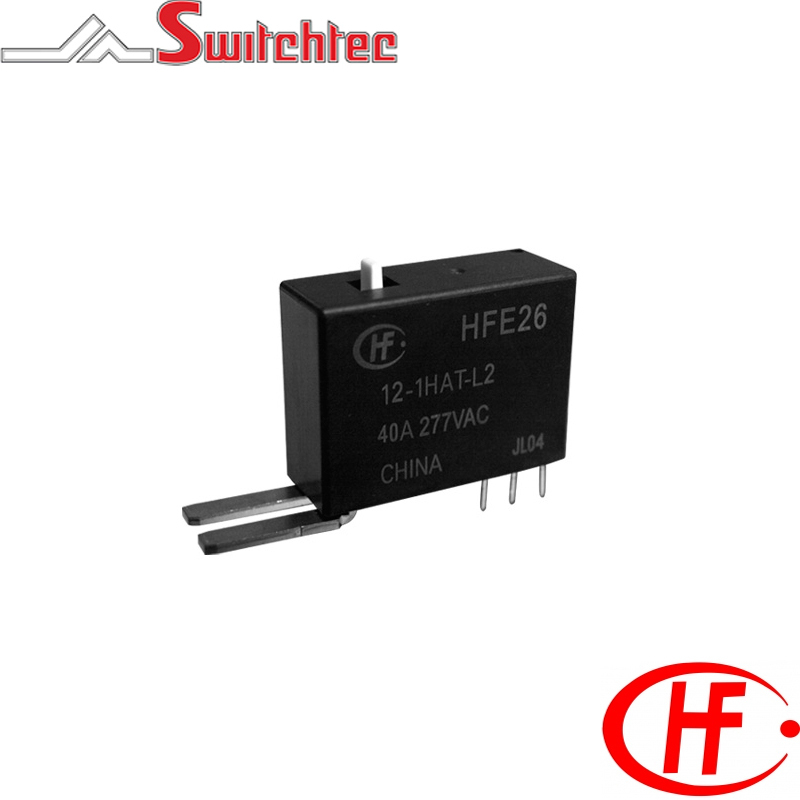

HFE264005HBTL22R HONGFA LATCHING RELAY 5VDC 1NO HFE26-40/005-HBT-L2-2-R 1C - Single Pole Changeover 5VDC 3.0W 40AMP (8.4+8.4) x (1�10%) 4 50
HFE264006HBTL22R HONGFA LATCHING RELAY 6VDC 1NO HFE26-40/006-HBT-L2-2-R 1C - Single Pole Changeover 6VDC 3.0W 40AMP (12+12) x (1�10%) 4.8 50
HFE264009HBTL22R HONGFA LATCHING RELAY 9VDC 1NO HFE26-40/009-HBT-L2-2-R 1C - Single Pole Changeover 9VDC 3.0W 40AMP (27+27) x (1�10%) 7.2 50
HFE264012HBTL22R HONGFA LATCHING RELAY 12VDC 1NO HFE26-40/012-HBT-L2-2-R 1C - Single Pole Changeover 12VDC 3.0W 40AMP (48+48) x (1�10%) 9.6 50
HFE264015HBTL22R HONGFA LATCHING RELAY 15VDC 1NO HFE26-40/015-HBT-L2-2-R 1C - Single Pole Changeover 18VDC 3.0W 40AMP (75+75) x (1�10%) 12 50
HFE264024HBTL22R HONGFA LATCHING RELAY 24VDC 1NO HFE26-40/024-HBT-L2-2-R 1C - Single Pole Changeover 24VDC 3.0W 40AMP (192+192) x (1�10%) 19.2 50
HFE264048HBTL22R HONGFA LATCHING RELAY 48VDC 1NO HFE26-40/048-HBT-L2-2-R 1C - Single Pole Changeover 48VDC 3.0W 40AMP (768+768) x (1�10%) 38.4 50
