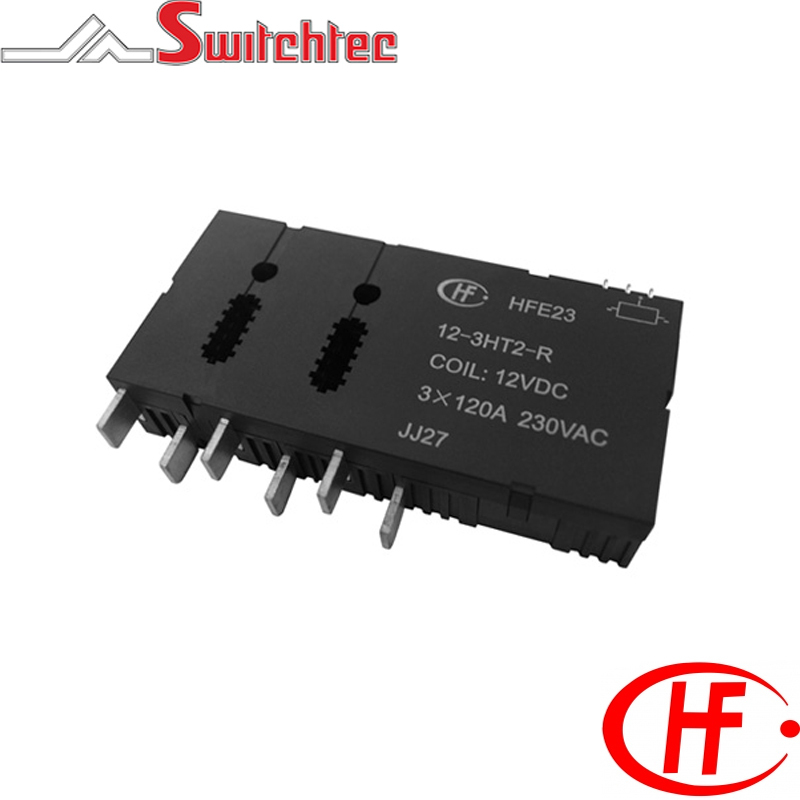

Single Coil Latching

Single Coil Latching



    • 3 phases latching relay



    • 120A switching capability



    • UC3 compliant in accordance with IEC 62055-31



    • Heavy load up to 27.6kVA



    • 4Kv dielectric strength between coil and contacts



    • RoHScompliant



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE23A0063DT1 HONGFA LATCHING RELAY 6VDC 120A 3NC HFE23-A/006-3DT1 3A - 3 Pole Normally Closed 6VDC 120AMP 4.8 7 x (1�10%) 100
HFE23A0123DT1 HONGFA LATCHING RELAY 12DC 120A 3NC HFE23-A/012-3DT1 3A - 3 Pole Normally Closed 12VDC 120AMP 9.6 29 x (1�10%) 100
HFE23A0243DT1 HONGFA LATCHING RELAY 24DC 120A 3NC HFE23-A/024-3DT1 3A - 3 Pole Normally Closed 24VDC 120AMP 19.2 115 x (1�10%) 100
HFE23A0483DT1 HONGFA LATCHING RELAY 48DC 120A 3NC HFE23-A/048-3DT1 3A - 3 Pole Normally Closed 48VDC 120AMP 38.4 460 x (1�10%) 100
