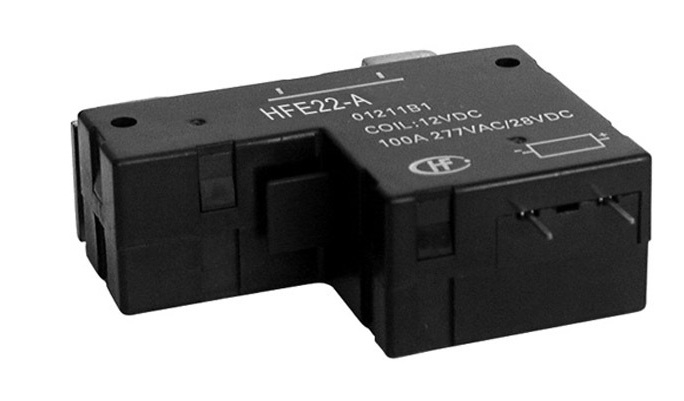

Single Coil Latching

Single Coil Latching



    • 100A 277Vac/28VDC contact switching capability



    • 4Kv dielectric strength between coil and contacts



    • Heavy load up to 27.7kVA



    • 1 Form A contact



    • Micro switch auxiliary also available



    • Contact material AgSn02



    • RoHS compliant



    • Approvals UL & CUR



    • PCB Terminals, solder Tag also available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE22A006H1T11 HONGFA LATCHING RELAY 6VDC 100A 1NO HFE22-A/006-H1T11 1A - Single Pole Normally Open 6VDC 2400mW 100AMP 4.8 16 x (1�10%) 100
HFE22A012H1T11 HONGFA LATCHING RELAY 12VDC 100A 1NO HFE22-A/012-H1T11 1A - Single Pole Normally Open 12VDC 2400mW 100AMP 9.6 60 x (1�10%) 100
HFE22A024H1T11 HONGFA LATCHING RELAY 24VDC 100A 1NO HFE22-A/024-H1T11 1A - Single Pole Normally Open 24VDC 2400mW 100AMP 19.2 250 x (1�10%) 100
HFE22A048H1T11 HONGFA LATCHING RELAY 48VDC 100A 1NO HFE22-A/048-H1T11 1A - Single Pole Normally Open 48VDC 2400mW 100AMP 38.4 1000 x (1�10%) 100
