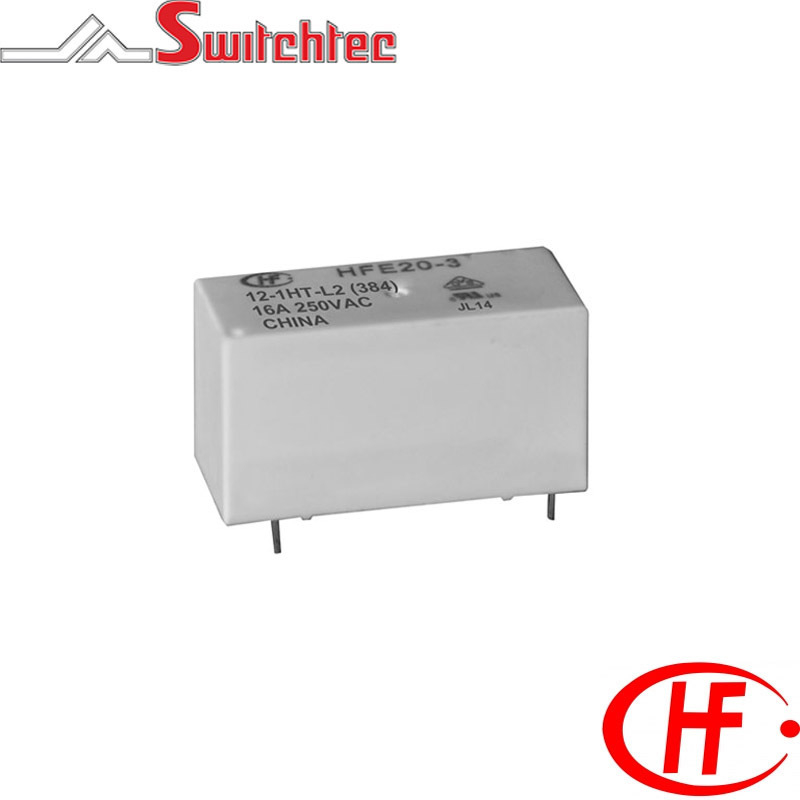

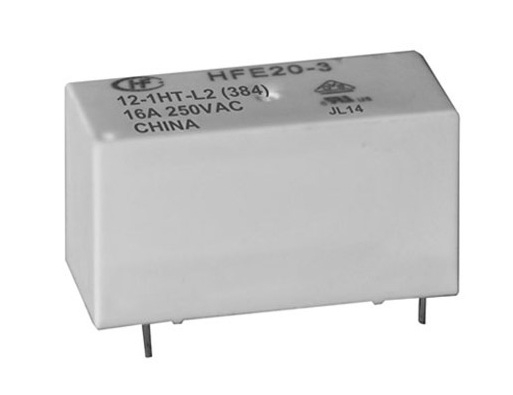

Single Coil Latching

Single Coil Latching



    • 16A 250VAC switching capacity



    • High inrush peak current



    • 4.4Kv dielectric strength between coil and contacts



    • 1 Form A contact arrangement



    • Contact material AgSn02



    • Reverse coil polarity also available



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE2030031HTL1 HONGFA LATCHING RELAY 3VDC 20A 1NO HFE20-3/003-1HT-L1 1A - Single Pole Normally Open 3VDC 400mW 16AMP 2.4 22.5 x (1�10%) 15
HFE2030051HTL1 HONGFA LATCHING RELAY 5VDC 20A 1NO HFE20-3/005-1HT-L1 1A - Single Pole Normally Open 5VDC 400mW 16AMP 4 62.5 x (1�10%) 15
HFE2030061HTL1 HONGFA LATCHING RELAY 6VDC 20A 1NO HFE20-3/006-1HT-L1 1A - Single Pole Normally Open 6VDC 400mW 16AMP 4.8 90 x (1�10%) 15
HFE2030121HTL1 HONGFA LATCHING RELAY 12VDC 20A 1NO HFE20-3/012-1HT-L1 1A - Single Pole Normally Open 12VDC 400mW 16AMP 9.6 360 x (1�10%) 15
HFE2030241HTL1 HONGFA LATCHING RELAY 24VDC 20A 1NO HFE20-3/024-1HT-L1 1A - Single Pole Normally Open 24VDC 400mW 16AMP 19.2 1440 x (1�10%) 15
