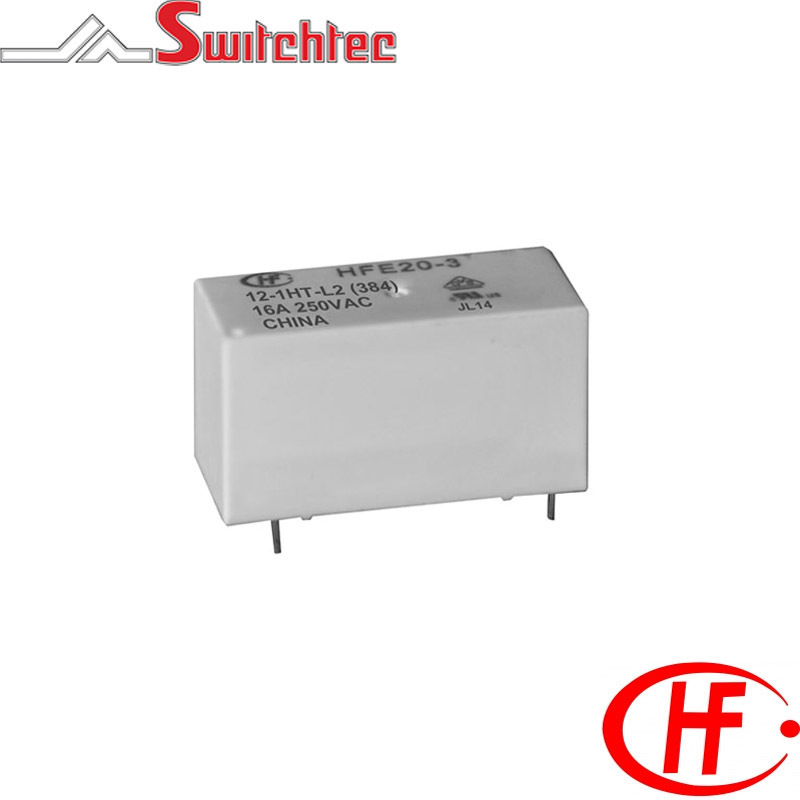

Single Coil Latching

Single Coil Latching



    • 16A 250VAC switching capacity



    • High inrush peak current



    • 4.4Kv dielectric strength between coil and contacts



    • 1 Form B contact arrangement



    • Contact material AgSn02



    • Reverse coil polarity also available



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE2020031DTL1 HONGFA LATCHING RELAY 3VDC 20A 1NC HFE20-3/003-1DT-L1 1B - Single Pole Normally Closed 3VDC 400mW 16AMP 2.4 22.5 x (1�10%) 15
HFE2020051DTL1 HONGFA LATCHING RELAY 5VDC 20A 1NC HFE20-2/005-1DT-L1 1B - Single Pole Normally Closed 5VDC 400mW 16AMP 4 62.5 x (1�10%) 15
HFE2020061DTL1 HONGFA LATCHING RELAY 6VDC 20A 1NC HFE20-2/006-1DT-L1 1B - Single Pole Normally Closed 6VDC 400mW 16AMP 4.8 90 x (1�10%) 15
HFE2020121DTL1 HONGFA LATCHING RELAY 12VDC 20A 1NC HFE20-2/012-1DT-L1 1B - Single Pole Normally Closed 12VDC 400mW 16AMP 9.6 360 x (1�10%) 15
HFE2020241DTL1 HONGFA LATCHING RELAY 24VDC 20A 1NC HFE20-2/024-1DT-L1 1B - Single Pole Normally Closed 24VDC 400mW 16AMP 19.2 1440 x (1�10%) 15
