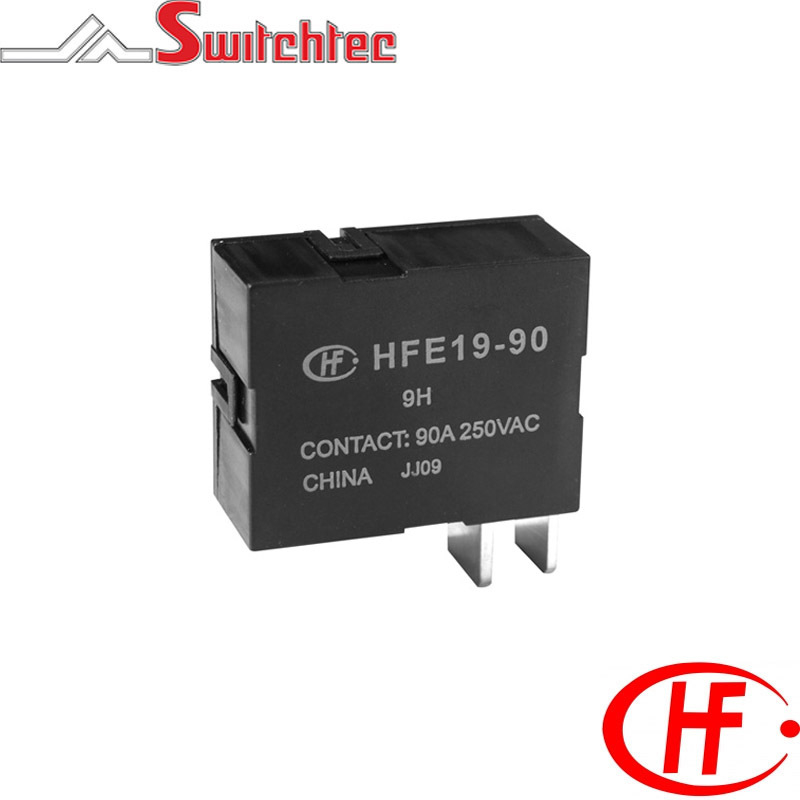

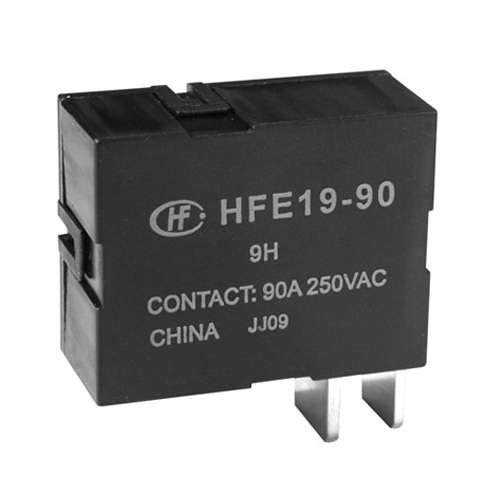

Double Coil Latching

Double Coil Latching



    • 90A switching capability



    • Accordance with IEC 62055:UC3



    • Contact: 3000A; Bearable load 6000ALoad Inrush



    • 2 Coil Latching



    • 1 Form B contact



    • Reverse polarity available



    • 4Kv dielectric strength between coil and contacts



    • RoHS compliant



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE1990005DT42 HONGFA LATCHING RELAY 5VDC 60A NC HFE19-90/005-DT-42 1B - Single Pole Normally Closed 5VDC 3000mW 90AMP 3.5 8 + 8 x (1�10%) 100
HFE1990006DT42 HONGFA LATCHING RELAY 6VDC 60A NC HFE19-90/006-DT-42 1B - Single Pole Normally Closed 6VDC 3000mW 90AMP 4.2 12 + 12 x (1�10%) 100
HFE1990009DT42 HONGFA LATCHING RELAY 9VDC 60A NC HFE19-90/009-DT-42 1B - Single Pole Normally Closed 9VDC 3000mW 90AMP 6.3 27 + 27 x (1�10%) 100
HFE1990012DT42 HONGFA LATCHING RELAY 12DC 60A NC HFE19-90/012-DT-42 1B - Single Pole Normally Closed 12VDC 3000mW 90AMP 8.4 48 + 48 x (1�10%) 100
HFE1990024DT42 HONGFA LATCHING RELAY 24DC 60A NC HFE19-90/024-DT-42 1B - Single Pole Normally Closed 24VDC 3000mW 90AMP 19.2 192 + 192 x (1�10%) 100
HFE1990048DT42 HONGFA LATCHING RELAY 48DC 60A NC HFE19-90/048-DT-42 1B - Single Pole Normally Closed 48VDC 3000mW 90AMP 38.4 1536 + 1536 x (1�10%) 100
