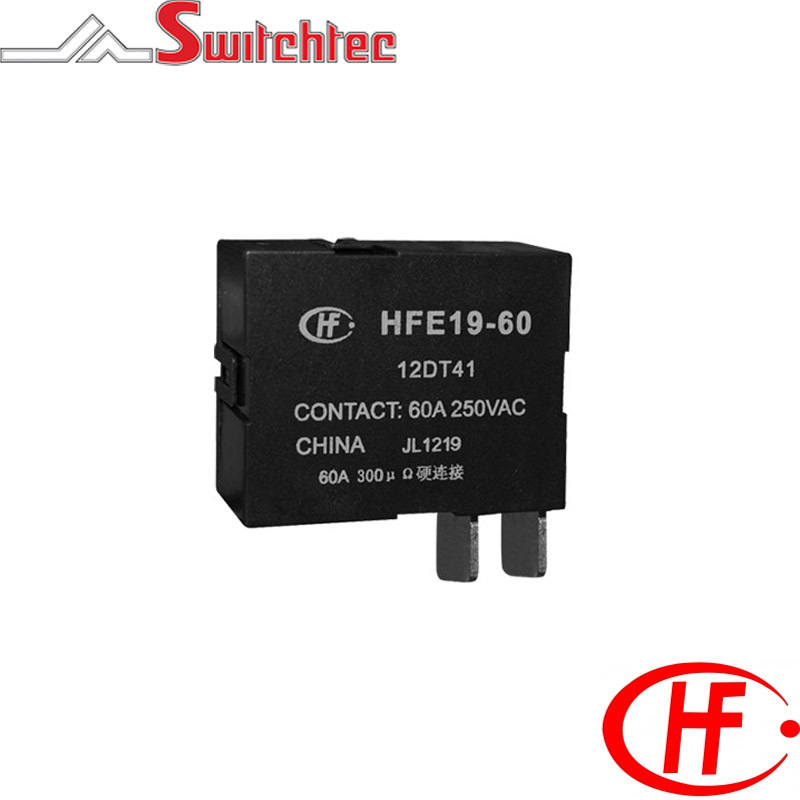

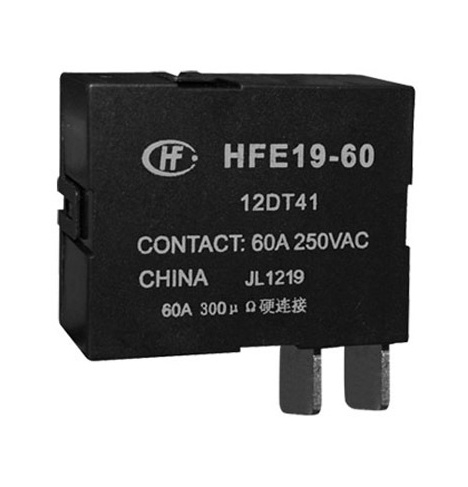

Single Coil Latching

Single Coil Latching



    • 60A switching capability



    • Accordance with IEC 62055:UC3



    • Contact: 3000A; Bearable load 6000ALoad Inrush



    • 1 Coil Latching



    • 1 Form A contact



    • Reverse polarity available



    • 4Kv dielectric strength between coil and contacts



    • RoHS compliant



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE1960005HT41 HONGFA LATCHING RELAY 5VDC 60A NO HFE19-90/005-HT-41 1A - Single Pole Normally Open 5VDC 1000mW 60AMP 3.5 24 x (1�10%) 100
HFE1960006HT41 HONGFA LATCHING RELAY 6VDC 60A NO HFE19-90/006-HT-41 1A - Single Pole Normally Open 6VDC 1000mW 60AMP 4.2 35 x (1�10%) 100
HFE1960009HT41 HONGFA LATCHING RELAY 9VDC 60A NO HFE19-90/009-HT-41 1A - Single Pole Normally Open 9VDC 1000mW 60AMP 6.3 80 x (1�10%) 100
HFE1960012HT41 HONGFA LATCHING RELAY 12VDC 60A NO HFE19-90/012-HT-41 1A - Single Pole Normally Open 12VDC 1000mW 60AMP 8.4 145 x (1�10%) 100
HFE1960024HT41 HONGFA LATCHING RELAY 24VDC 60A NO HFE19-90/024-HT-41 1A - Single Pole Normally Open 24VDC 1000mW 60AMP 19.2 575 x (1�10%) 100
HFE1960048HT41 HONGFA LATCHING RELAY 48VDC 60A NO HFE19-90/048-HT-41 1A - Single Pole Normally Open 48VDC 1000mW 60AMP 38.4 2270 x (1�10%) 100
