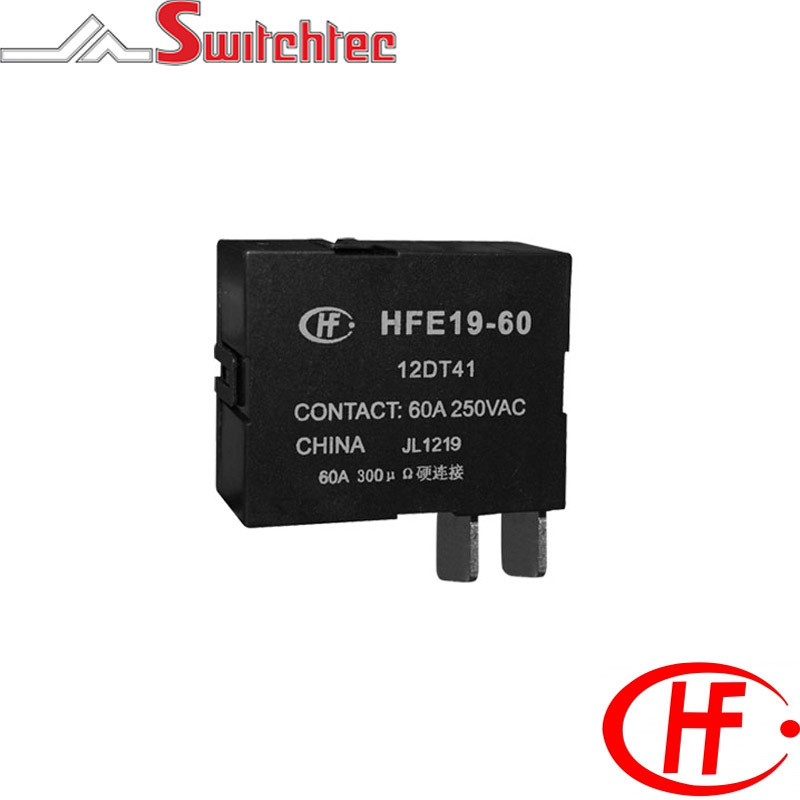

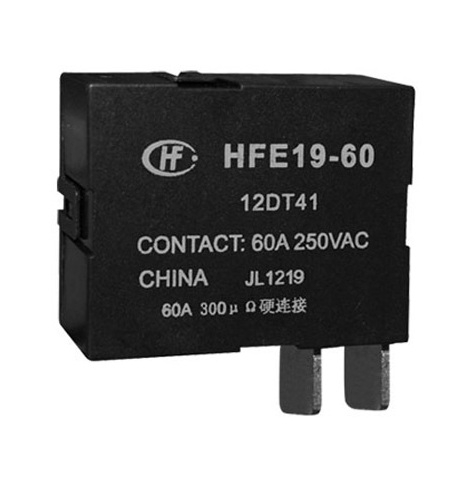

Single Coil Latching

Single Coil Latching



    • 60A switching capability



    • Accordance with IEC 62055:UC3



    • Contact: 3000A; Bearable load 6000A Load Inrush



    • 1 Coil Latching



    • 1 Form B contact



    • Reverse polarity available



    • 4Kvdielectric strength between coil and contacts



    • RoHS compliant



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE1960005DT41 HONGFA LATCHING RELAY 5VDC 60A NC HFE19-90/005-DT-41 1B - Single Pole Normally Closed 5VDC 1000mW 60AMP 3.5 24 x (1�10%) 100
HFE1960006DT41 HONGFA LATCHING RELAY 6VDC 60A NC HFE19-90/006-DT-41 1B - Single Pole Normally Closed 6VDC 1000mW 60AMP 4.2 35 x (1�10%) 100
HFE1960009DT41 HONGFA LATCHING RELAY 9VDC 60A NC HFE19-90/009-DT-41 1B - Single Pole Normally Closed 9VDC 1000mW 60AMP 6.3 80 x (1�10%) 100
HFE1960012DT41 HONGFA LATCHING RELAY 12DC 60A NC HFE19-90/012-DT-41 1B - Single Pole Normally Closed 12VDC 1000mW 60AMP 8.4 145 x (1�10%) 100
HFE1960024DT41 HONGFA LATCHING RELAY 24DC 60A NC HFE19-90/024-DT-41 1B - Single Pole Normally Closed 24VDC 1000mW 60AMP 19.2 575 x (1�10%) 100
HFE1960048DT41 HONGFA LATCHING RELAY 48DC 60A NC HFE19-90/048-DT-41 1B - Single Pole Normally Closed 48VDC 1000mW 60AMP 38.4 2270 x (1�10%) 100
