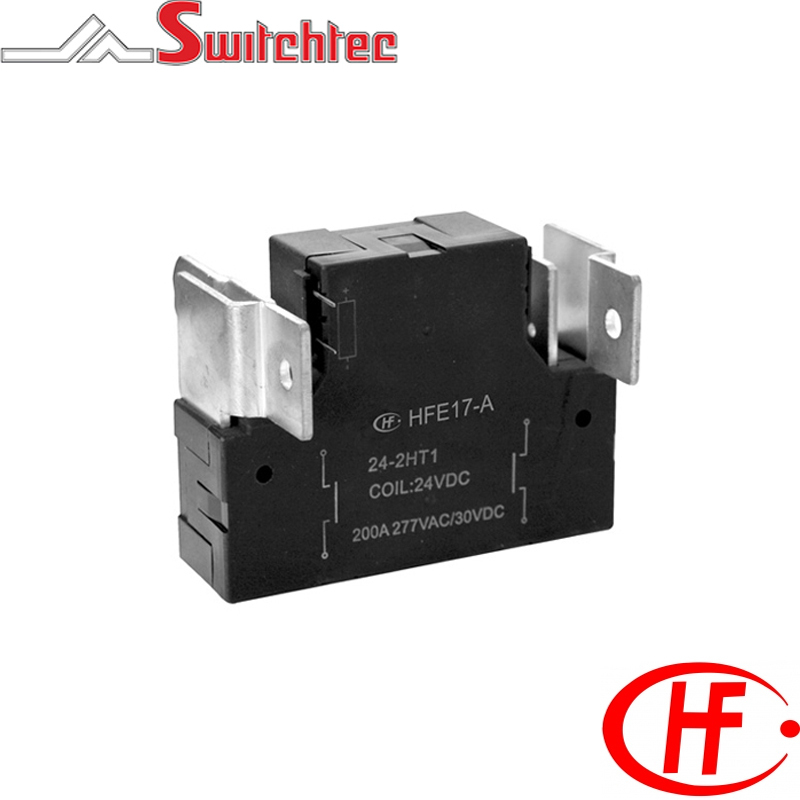

Single Coil Latching

Single Coil Latching



    • 200A contact switching capability



    • According to ANSI C 12.1



    • Switching power up to 55.4kVA



    • 4Kv dielectric strength between coil and contacts



    • RoHS compliant



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Set/Reset Voltage VDC Max Price
HFE17A0122AT1 HONGFA LATCHING RELAY 12VDC 200A 2NO HFE12-A/012-2AT1 2A - Single Pole Normally Open 12VDC 12W 200AMP 9.6 12 x (1�10%) 200
HFE17A0242AT1 HONGFA LATCHING RELAY 24VDC 200A 2NO HFE12-A/024-2AT1 2A - Single Pole Normally Open 24VDC 12W 200AMP 19.2 48 x (1�10%) 200
HFE17A0482AT1 HONGFA LATCHING RELAY 12VDC 200A 2NO HFE12-A/048-2AT1 2A - Single Pole Normally Open 48VDC 12W 200AMP 38.4 190 x (1�10%) 200
