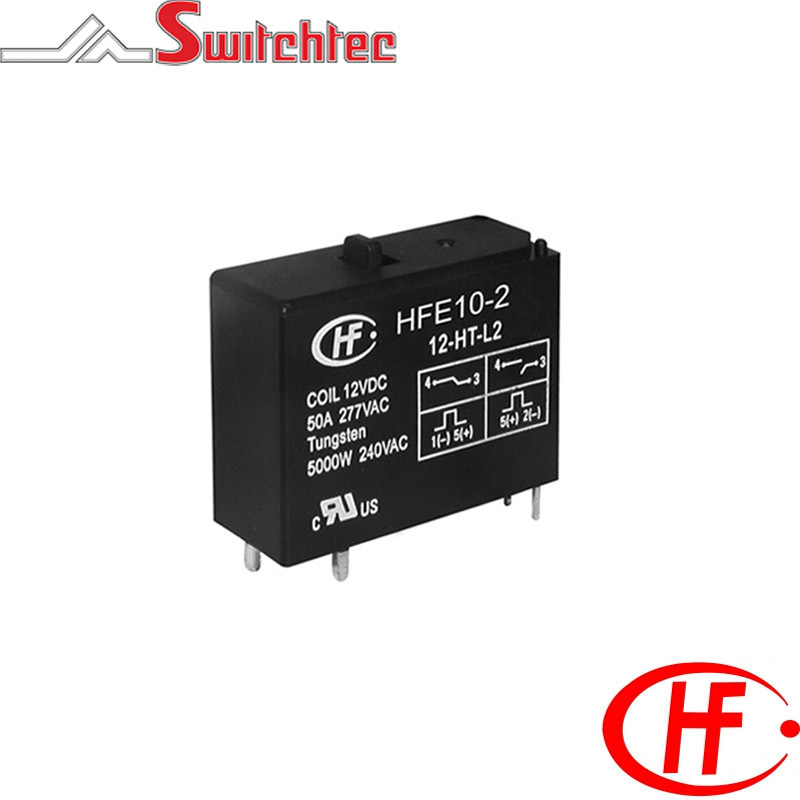

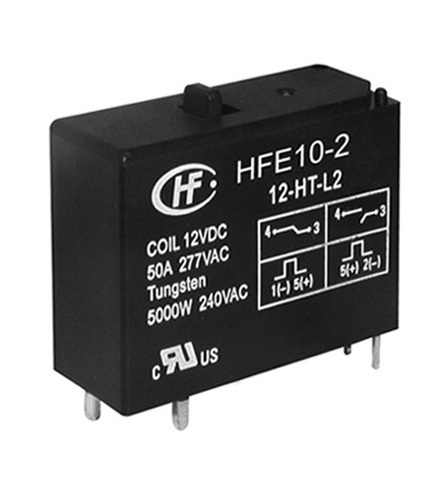

Single Coil Latching

Single Coil Latching



    • 50A 250VAC contact switching capacity



    • Lamp load up to 5000W



    • 1 Form A



    • Capacitor load up to 200uF (min inrush current at 500A/10us)



    • 4Kv dielectric strength between coil and contacts



    • Creepage distance 8mm



    • Standard and reverse polarity types available



    • Manual switch option



    • Contact material AgSn02



    • Wash tight available for the HFE101



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HFE101005HSTL1 HONGFA LATCHING RELAY 5VDC 50A PCB HFE10-1/005-HST-L1 1A - Single Pole Normally Open 5VDC 1500mW 6.5 50AMP 16.8 x (1�10%) 4 50
HFE101006HSTL1 HONGFA LATCHING RELAY 6VDC 50A PCB HFE10-1/006-HST-L1 1A - Single Pole Normally Open 6VDC 1500mW 7.8 50AMP 24 x (1�10%) 4.8 50
HFE101009HSTL1 HONGFA LATCHING RELAY 9VDC 50A PCB HFE10-1/009-HST-L1 1A - Single Pole Normally Open 9VDC 1500mW 11.7 50AMP 54 x (1�10%) 7.2 50
HFE101012HSTL1 HONGFA LATCHING RELAY 12DC 50A PCB HFE10-1/012-HST-L1 1A - Single Pole Normally Open 12VDC 1500mW 15.6 50AMP 96 x (1�10%) 9.6 50
HFE101024HSTL1 HONGFA LATCHING RELAY 24DC 50A PCB HFE10-1/024-HST-L1 1A - Single Pole Normally Open 24VDC 1500mW 31.2 50AMP 384 x (1�10%) 19.2 50
HFE101048HSTL1 HONGFA LATCHING RELAY 48DC 50A PCB HFE10-1/048-HST-L1 1A - Single Pole Normally Open 48VDC 1500mW 62.4 50AMP 1536 x (1�10%) 38.4 50
