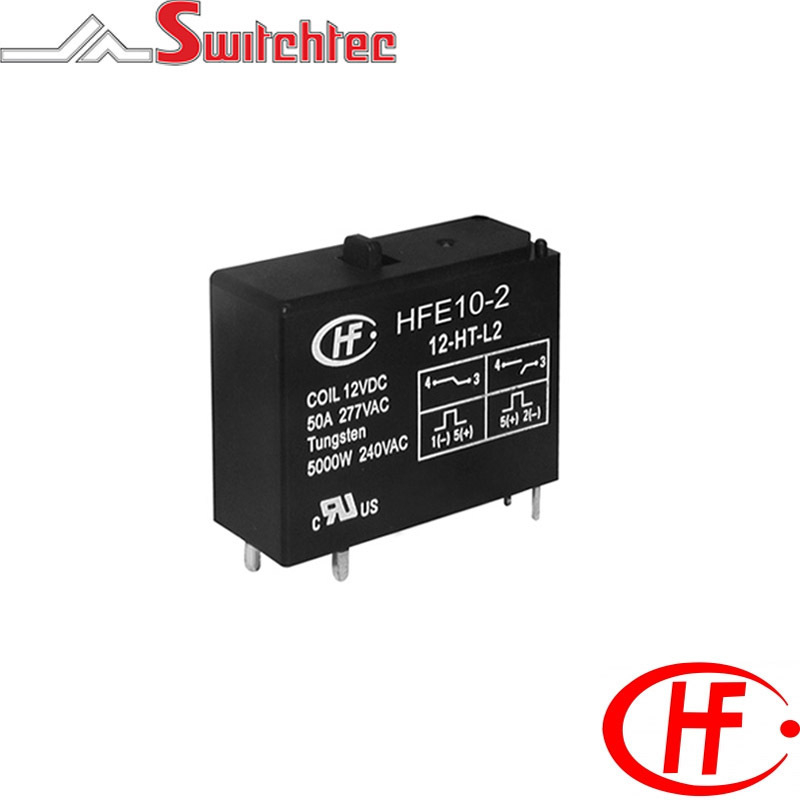

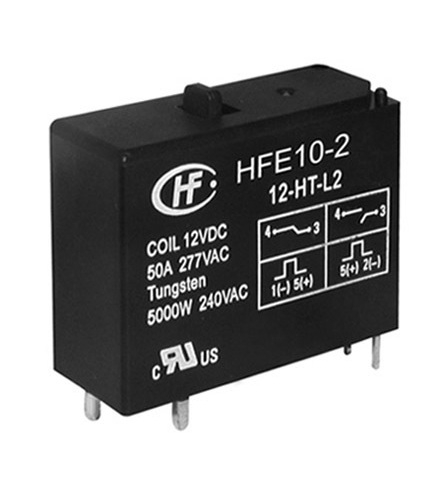

Single Coil Latching

Single Coil Latching



    • 50A 250VAC contact switching capacity



    • Lamp load up to 5000W



    • Form C contact as standard



    • Capacitor load up to 200uF (min inrush current at 500A/10us)



    • 4Kv dielectric strength between coil and contacts



    • Creepage distance 8mm



    • Standard and reverse polarity types available



    • Manual switch option



    • Contact material AgSn02



    • Wash tight available for the HFE101



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HFE101005ZSTL1 HONGFA LATCHING RELAY 5VDC 50A PCB HFE10-1/005-ZST-L1 1C - Single Pole Changeover 5VDC 1500mW 6.5 50AMP 16.8 x (1�10%) 4 50
HFE101006ZSTL1 HONGFA LATCHING RELAY 6VDC 50A PCB HFE10-1/006-ZST-L1 1C - Single Pole Changeover 6VDC 1500mW 7.8 50AMP 24 x (1�10%) 4.8 50
HFE101009ZSTL1 HONGFA LATCHING RELAY 9VDC 50A PCB HFE10-1/009-ZST-L1 1C - Single Pole Changeover 9VDC 1500mW 11.7 50AMP 54 x (1�10%) 7.2 50
HFE101012ZSTL1 HONGFA LATCHING RELAY 12VDC 50A PCB HFE10-1/012-ZST-L1 1C - Single Pole Changeover 12VDC 1500mW 15.6 50AMP 96 x (1�10%) 9.6 50
HFE101024ZSTL1 HONGFA LATCHING RELAY 24VDC 50A PCB HFE10-1/024-ZST-L1 1C - Single Pole Changeover 24VDC 1500mW 31.2 50AMP 384 x (1�10%) 19.2 50
HFE101048ZSTL1 HONGFA LATCHING RELAY 48VDC 50A PCB HFE10-1/048-ZST-L1 1C - Single Pole Changeover 48VDC 1500mW 62.4 50AMP 1536 x (1�10%) 38.4 50
