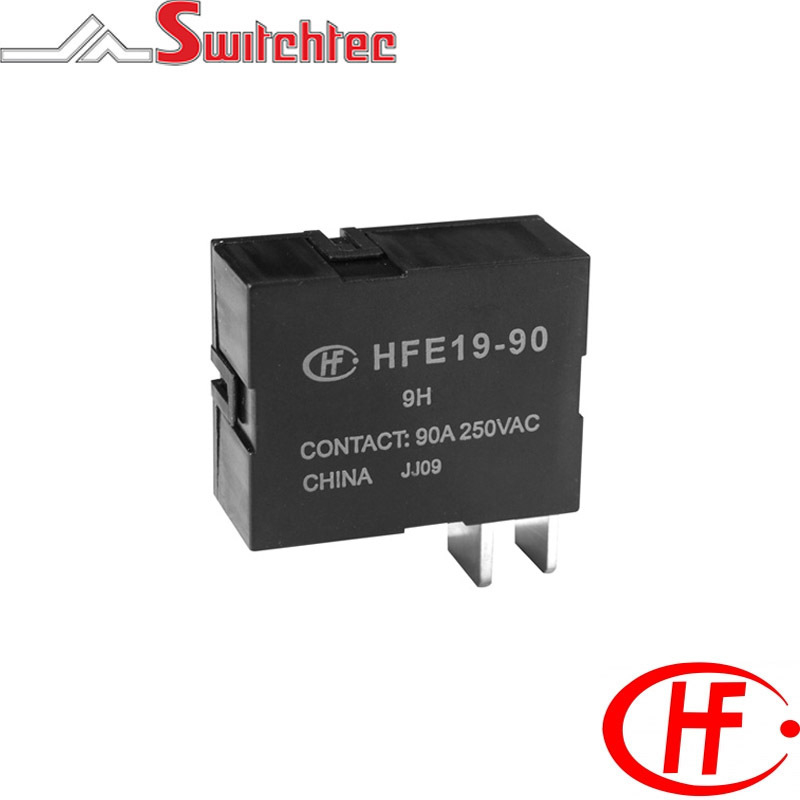

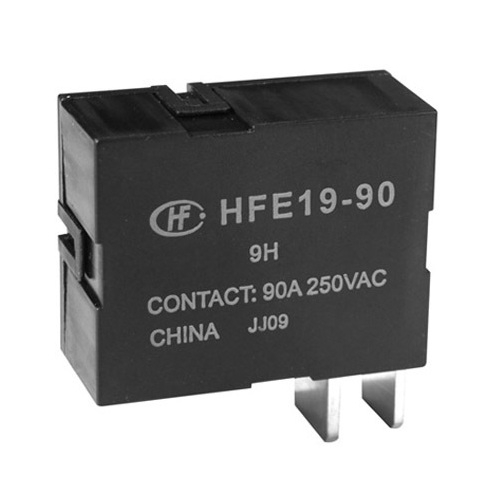

Double Coil Latching

Double Coil Latching



    • 90A switching capability



    • Accordance with IEC 62055:UC3



    • Contact: 3000A; Bearable load 6000A Load Inrush



    • 2 Coil Latching



    • 1 Form A contact



    • Reverse polarity available



    • 4Kvdielectric strength between coil and contacts



    • RoHS compliant



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE1990005HT42 HONGFA LATCHING RELAY 5VDC 60A NO HFE19-90/005-HT-42 1A - Single Pole Normally Open 5VDC 3000mW 90AMP 3.5 8 + 8 x (1�10%) 100
HFE1990006HT42 HONGFA LATCHING RELAY 6VDC 60A NO HFE19-90/006-HT-42 1A - Single Pole Normally Open 6VDC 3000mW 90AMP 4.2 12 + 12 x (1�10%) 100
HFE1990009HT42 HONGFA LATCHING RELAY 9VDC 60A NO HFE19-90/009-HT-42 1A - Single Pole Normally Open 9VDC 3000mW 90AMP 6.3 27 + 27 x (1�10%) 100
HFE1990012HT42 HONGFA LATCHING RELAY 12VDC 60A NO HFE19-90/012-HT-42 1A - Single Pole Normally Open 12VDC 3000mW 90AMP 8.4 48 + 48 x (1�10%) 100
HFE1990024HT42 HONGFA LATCHING RELAY 24VDC 60A NO HFE19-90/024-HT-42 1A - Single Pole Normally Open 24VDC 3000mW 90AMP 19.2 192 + 192 x (1�10%) 100
HFE1990048HT42 HONGFA LATCHING RELAY 48VDC 60A NO HFE19-90/048-HT-42 1A - Single Pole Normally Open 48VDC 3000mW 90AMP 38.4 1536 + 1536 x (1�10%) 100
