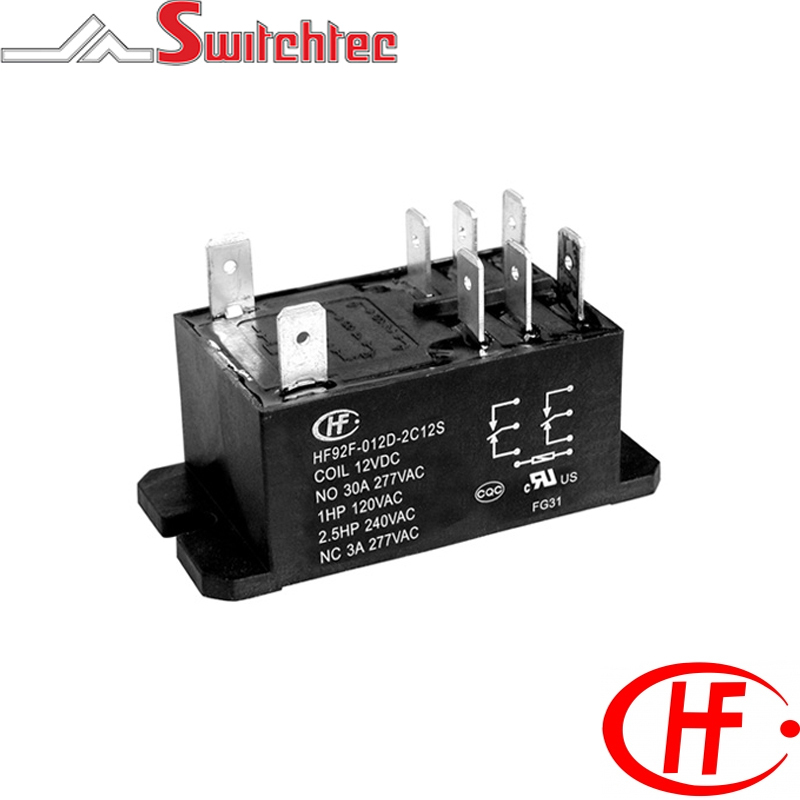

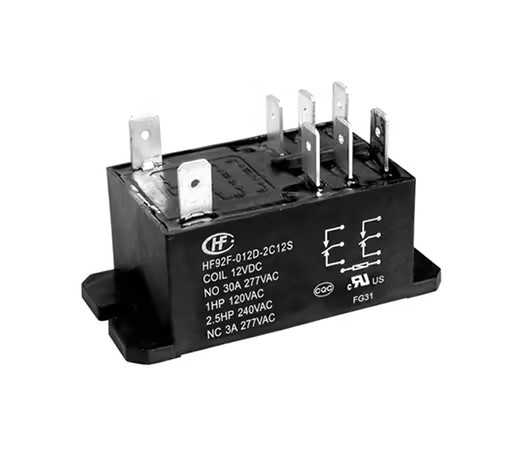

DC Type

DC Type

  • 30 Amp switching capacity
  • Creepage distance 8mm
  • 2 Form C contact
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Class F Coil insulation
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL, VDE and CUL
  • Quick Connect Terminal



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF92F005D2C31S HONGFA INDUSTRIAL RELAY 5VDC 30A 2CO HF92F-005D-2C31S 2C - Double Pole Changeover 5VDC 1700mW 8 30 AMP 3.8 0.5 15.3 x (1�10%)
HF92F006D2C31S HONGFA INDUSTRIAL RELAY 6VDC 30A 2CO HF92F-006D-2C31S 2C - Double Pole Changeover 6VDC 1700mW 9.6 30 AMP 4.5 0.6 22 x (1�10%)
HF92F012D2C21S HONGFA INDUSTRIAL RELAY 12DC 30A 2CO HF92F-012D-2C21S 2C - Double Pole Changeover 12VDC 1.7W 19.2 30 AMP 9 1.2 86 x (1�10%)
HF92F012D2C31S HONGFA INDUSTRIAL RELAY 12VDC 30A 2CO HF92F-012D-2C31S 2C - Double Pole Changeover 12VDC 1700mW 19.2 30 AMP 9 1.2 86 x (1�10%)
HF92F024D2C21S HONGFA INDUSTRIAL RELAY 24DC 30A 2CO HF92F-024D-2C21S 2C - Double Pole Changeover 24VDC 1.7W 38.4 30 Amp 18 2.4 350 x (1�10%)
HF92F024D2C31S HONGFA INDUSTRIAL RELAY 24VDC 30A 2CO HF92F-024D-2C31S 2C - Double Pole Changeover 24VDC 1700mW 38.4 30 AMP 18 2.4 350 x (1�10%)
HF92F048D2C31S HONGFA INDUSTRIAL RELAY 48VDC 30A 2CO HF92F-048D-2C31S 2C - Double Pole Changeover 48VDC 1700mW 76.8 30 AMP 36 4.8 1390 x (1�10%)
HF92F110D2C31S HONGFA INDUSTRIAL RELAY 110VDC 30A 2CO HF92F-110D-2C31S 2C - Double Pole Changeover 110VDC 1700mW 176 30 AMP 82.5 11 7255 x (1�10%)
