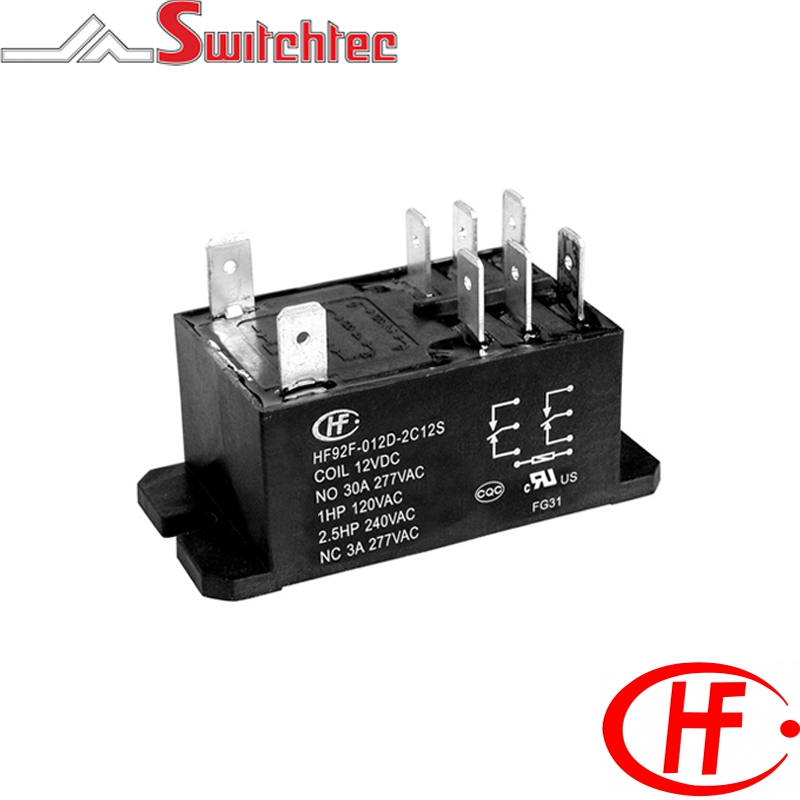

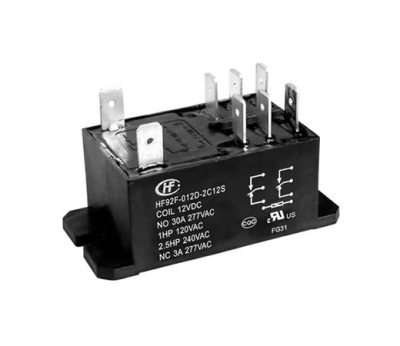

AC Type (at 60Hz)

AC Type (at 60Hz)

  • 30 Amp switching capacity
  • Creepage distance 8mm
  • 2 Form C contact
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Class F Coil insulation
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL, VDE and CUL
  • Quick Connect Terminal



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF92F024A62C31S HONGFA INDUSTRIAL RELAY 24VAC 30A 2CO HF92F-024A62C31S 2C - Double Pole Changeover 24VAC 4.0VA 26.4 30 AMP 35.7 x (1�10%) 19.2 4.8
HF92F120A62C31S HONGFA INDUSTRIAL RELAY 120VAC 30A 2CO HF92F-120A6-2C31S 2C - Double Pole Changeover 120VAC 4.0VA 132 30 AMP 830 x (1�10%) 96 24
HF92F208A62C31S HONGFA INDUSTRIAL RELAY 208VAC 30A 2CO HF92F-208A6-2C31S 2C - Double Pole Changeover 208VAC 4.0VA 229 30 AMP 2600 x (1�10%) 166.4 41.6
HF92F220A62C31S HONGFA INDUSTRIAL RELAY 220VAC 30A 2CO HF92F-220A6-2C31S 2C - Double Pole Changeover 220VAC 4.0VA 242 30 AMP 2870 x (1�10%) 176 44
HF92F240A62C31S HONGFA INDUSTRIAL RELAY 240VAC 30A 2CO HF92F-240A6-2C31S 2C - Double Pole Changeover 240VAC 4.0VA 264 30 AMP 3800 x (1�10%) 192 48
HF92F277A62C31S HONGFA INDUSTRIAL RELAY 277VAC 30A 2CO HF92F-277A6-2C31S 2C - Double Pole Changeover 277VAC 4.0VA 305 30 AMP 4700 x (1�10%) 221.6 55.4
