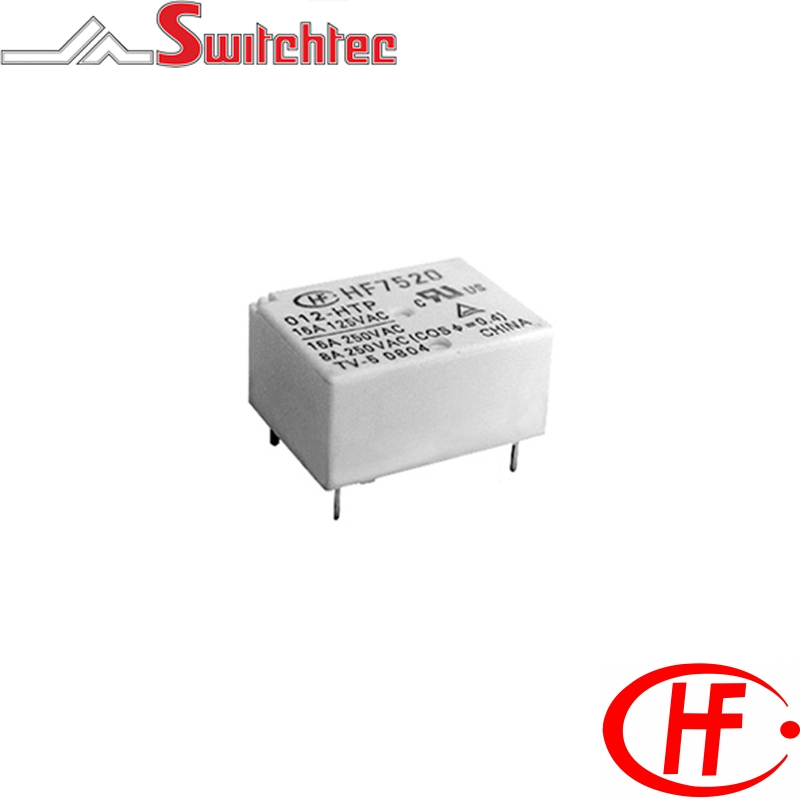

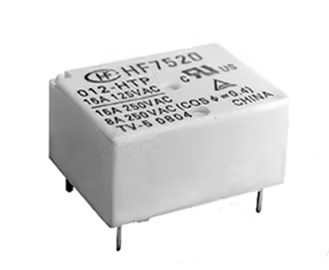

10 Amp 1 Pole Changeover Relay

10 Amp 1 Pole Changeover Relay



    • 10 Amp switching capacity



    • 1 Form C contact



    • 400mW Coil



    • Plastic sealed and Flux proofed types (with vent hole) available



    • RoHS compliant



    • Approvals UL/CUL, TUV and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF7520005ZST HONGFA PCB POWER RELAY 5VDC 10A 1CO HF7520/005-ZST 1C - Single Pole Changeover 5VDC 400mW 6.5 10 AMP 4 0.5 62.5 x (1�10%)
HF7520006ZST HONGFA PCB POWER RELAY 6VDC 10A 1CO HF7520/006-ZST 1C - Single Pole Changeover 6VDC 400mW 7.8 10 AMP 4.8 0.6 90 x (1�10%)
HF7520009ZST HONGFA PCB POWER RELAY 9VDC 10A 1CO HF7520/009-ZST 1C - Single Pole Changeover 9VDC 400mW 11.7 10 AMP 7.2 0.9 202.5 x (1�10%)
HF7520012ZST HONGFA PCB POWER RELAY 12VDC 10A 1CO HF7520/012-ZST 1C - Single Pole Changeover 12VDC 400mW 15.6 10 AMP 9.6 1.2 360 x (1�10%)
HF7520018ZST HONGFA PCB POWER RELAY 18VDC 10A 1CO HF7520/018-ZST 1C - Single Pole Changeover 18VDC 400mW 23.4 10 AMP 14.4 1.8 810 x (1�10%)
HF7520024ZST HONGFA PCB POWER RELAY 24VDC 10A 1CO HF7520/024-ZST 1C - Single Pole Changeover 24VDC 400mW 31.2 10 AMP 19.2 2.4 1440 x (1�10%)
HF7520048ZST HONGFA PCB POWER RELAY 48VDC 10A 1CO HF7520/048-ZST 1C - Single Pole Changeover 48VDC 400mW 62.4 10 AMP 38.4 4.8 5760 x (1�10%)
