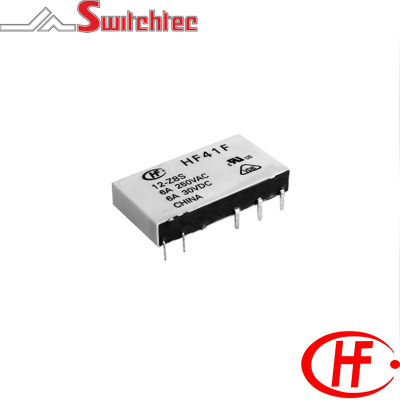

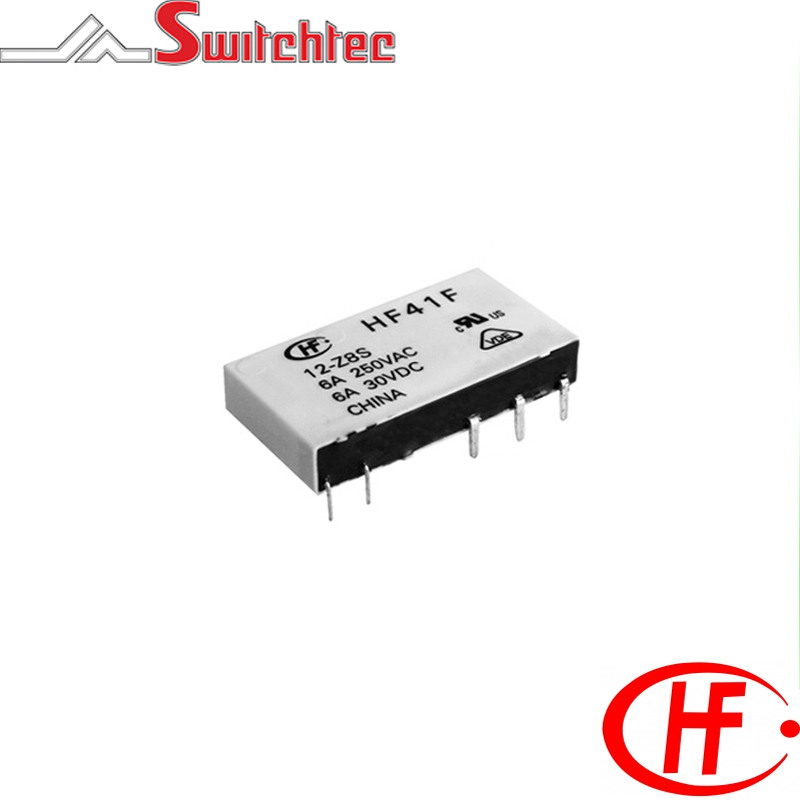

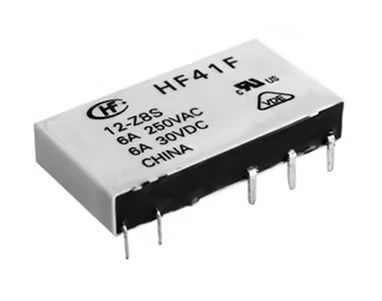

Flat Pack

Flat Pack

  • Slim size, 5mm
  • 6 Amp switching capacity
  • 1 Form A contact
  • 4KV high break downvoltage between coil and contacts
  • Surge voltage up to 6kV (coil and contacts)
  • Wash tight
  • Creepage and Clearance: 8mm
  • High sensitive coils (170mW 5 to 24VDC) (210mW, 48 & 60VDC)
  • Contact materials AgNi. Gold plated available
  • RoHS compliant
  • Approvals UL & CUL
  • Flatpack version
  • Din Rail Plug in socket available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF41F-005-H8S HONGFA PCB INTERFACE RELAY 5VDC 6A NO HF41F/005-H8S 1A - Single Pole Normally Open 5VDC 170mW 7.5 6 AMP 3.75 0.25 147 x (1�10%)
HF41F-006-H8S HONGFA PCB INTERFACE RELAY 6VDC 6A NO HF41F/006-H8S 1A - Single Pole Normally Open 6VDC 170mW 9 6 AMP 4.5 0.3 212 x (1�10%)
HF41F-009-H8S HONGFA PCB INTERFACE RELAY 9VDC 6A NO HF41F/009-H8S 1A - Single Pole Normally Open 9VDC 170mW 13.5 6 AMP 6.75 0.45 476 x (1�10%)
HF41F-012-H8S HONGFA PCB INTERFACE RELAY 12VDC 6A NO HF41F/012-H8S 1A - Single Pole Normally Open 12VDC 170mW 18 6 AMP 9 0.6 848 x (1�10%)
HF41F-018-H8S HONGFA PCB INTERFACE RELAY 18VDC 6A NO HF41F/018-H8S 1A - Single Pole Normally Open 18VDC 170mW 27 6 AMP 13.5 0.9 1906 x (1�10%)
HF41F-024-H8S HONGFA PCB INTERFACE RELAY 24VDC 6A CO HF41F/024-H8S 1A - Single Pole Normally Open 24VDC 170mW 36 6 AMP 18 1.2 3390 x (1�15%)
HF41F-048-H8S HONGFA PCB INTERFACE RELAY 48VDC 6A NO HF41F/048-H8S 1A - Single Pole Normally Open 48VDC 210mW 72 6 AMP 36 2.4 10600 x (1�15%)
HF41F-060-H8S HONGFA PCB INTERFACE RELAY 60VDC 6A NO HF41F/060-H8S 1A - Single Pole Normally Open 60VDC 210mW 90 6 AMP 45 3 16600 x (1�15%)
