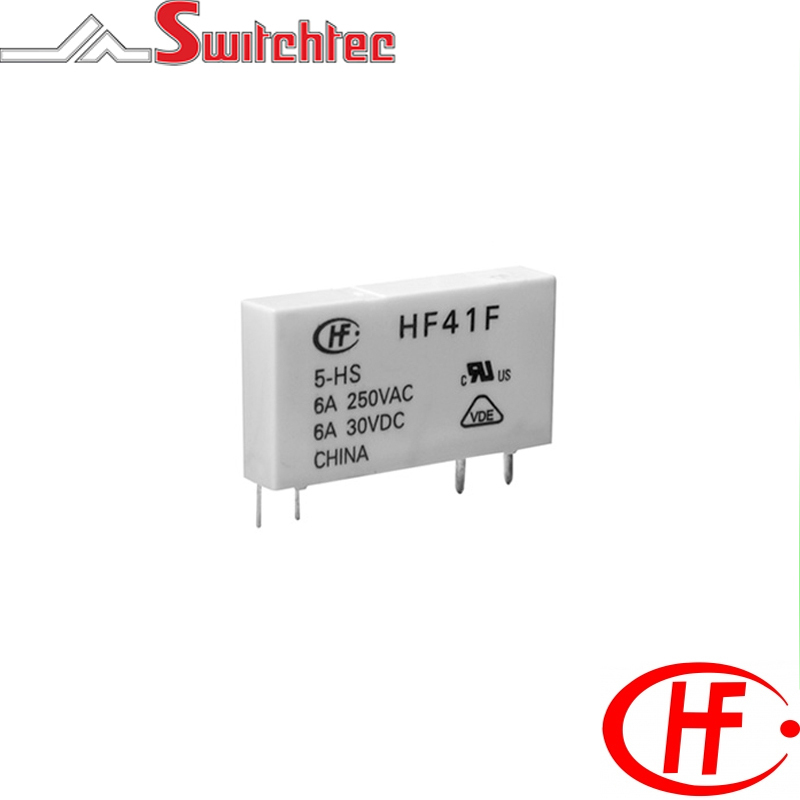

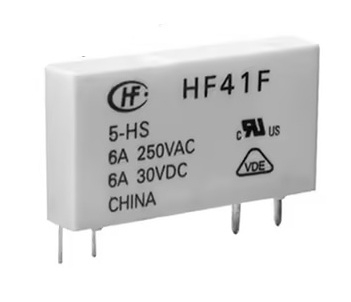

Vertical

Vertical

  • Slim size, 5mm
  • 6 Amp switching capacity
  • 1 Form C contact
  • 4KV high break down voltage between coil and contacts
  • Surge voltage up to 6kV (coil and contacts)
  • Wash tight
  • Creepage and Clearance: 8mm
  • High sensitive coils (170mW 5 to 24VDC) (210mW, 48 & 60VDC)
  • Contact materials AgNi. Gold plated available
  • RoHS compliant
  • Approvals UL & CUL
  • Din Rail Plug in socket available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Price
HF41F-005-ZS HONGFA PCB INTERFACE RELAY 5VDC 6A CO HF41F/5-ZS 1C - Single Pole Changeover 5VDC 170mW 7.5 6 AMP 3.75 0.25
HF41F-006-ZS HONGFA PCB INTERFACE RELAY 6VDC 6A CO HF41F/006-ZS 1C - Single Pole Changeover 6VDC 170mW 9 6 AMP 4.5 0.3
HF41F-009-ZS HONGFA PCB INTERFACE RELAY 9VDC 6A CO HF41F/009-ZS 1C - Single Pole Changeover 9VDC 170mW 13.5 6 AMP 6.75 0.45
HF41F-012-ZS HONGFA PCB INTERFACE RELAY 12VDC 6A CO HF41F/12-ZS 1C - Single Pole Changeover 12VDC 170mW 18 6 AMP 9 0.6
HF41F-018-ZS HONGFA PCB INTERFACE RELAY 24VDC 6A CO HF41F/018-ZS 1C - Single Pole Changeover 18VDC 170mW 27 6 AMP 13.5 0.9
HF41F-024-ZS HONGFA PCB INTERFACE RELAY 24VDC 6A CO HF41F/24-ZS 1C - Single Pole Changeover 24VDC 170mW 36 6 AMP 18 1.2
HF41F-048-ZS HONGFA PCB INTERFACE RELAY 48VDC 6A CO HF41F/048-ZS 1C - Single Pole Changeover 48VDC 210mW 72 6 AMP 36 2.4
HF41F-060-ZS HONGFA PCB INTERFACE RELAY 60VDC 6A CO HF41F/060-ZS 1C - Single Pole Changeover 60VDC 210mW 90 6A 45 3
