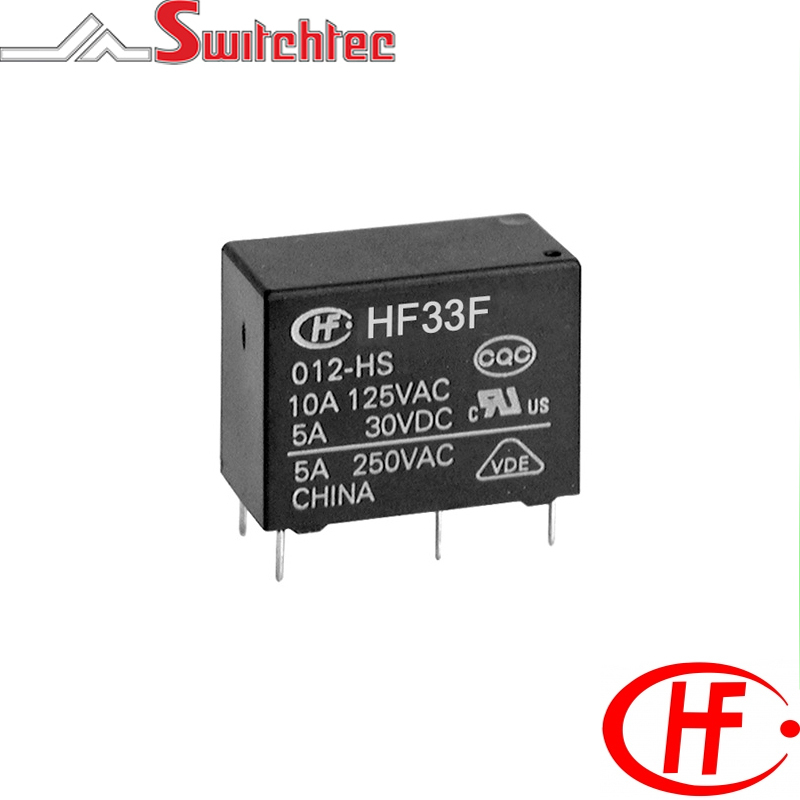

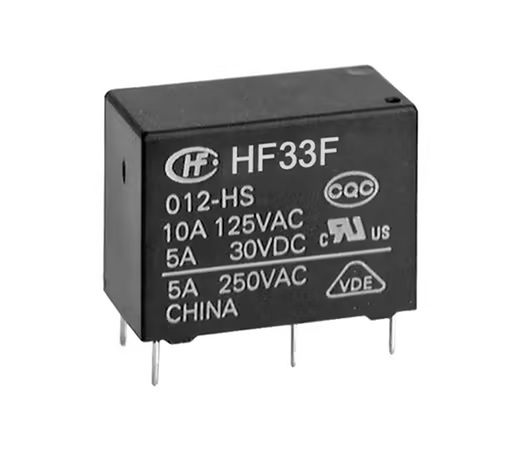

Standard Coil

Standard Coil

  • 10A switching capability
  • 1 Form A contact
  • Creepage distance: 8mm for 1N/O & 1N/C
  • Clearance distance: N/O type 4.5mm; N/C type 4mm
  • Form A contacts with standard coil
  • Wash tight
  • Contact material Agni
  • RoHS compliant
  • Safety approvals UL/CUL & VDE



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF33F003HST HONGFA PCB POWER RELAY 3VDC 10A 1NO HF33F/003-HST 1A - Single Pole Normally Open 3VDC 450mW 3.9 10AMP 2.25 0.15 20 x (1�10%)
HF33F005HST HONGFA PCB POWER RELAY 5VDC 10A 1NO HF33F/005-HST 1A - Single Pole Normally Open 5VDC 450mW 6.5 10AMP 3.75 0.25 55 x (1�10%)
HF33F006HST HONGFA PCB POWER RELAY 6VDC 10A 1NO HF33F/006-HST 1A - Single Pole Normally Open 6VDC 450mW 7.8 10AMP 4.5 0.3 80 x (1�10%)
HF33F009HST HONGFA PCB POWER RELAY 9VDC 10A 1NO HF33F/009-HST 1A - Single Pole Normally Open 9VDC 450mW 11.7 10AMP 6.75 0.45 180 x (1�10%)
HF33F012HST HONGFA PCB POWER RELAY 12VDC 10A 1NO HF33F/012-HST 1A - Single Pole Normally Open 12VDC 450mW 15.6 10AMP 9 0.6 320 x (1�10%)
HF33F018HST HONGFA PCB POWER RELAY 18VDC 10A 1NO HF33F/018-HST 1A - Single Pole Normally Open 18VDC 450mW 23.4 10AMP 13.5 0.9 720 x (1�10%)
HF33F024HST HONGFA PCB POWER RELAY 24VDC 10A 1NO HF33F/024-HST 1A - Single Pole Normally Open 24VDC 450mW 31.2 10AMP 18 1.2 1280 x (1�10%)
HF33F048HST HONGFA PCB POWER RELAY 48VDC 10A 1NO HF33F/048-HST 1A - Single Pole Normally Open 48VDC 450mW 62.4 10AMP 36 2.4 5120 x (1�10%)
