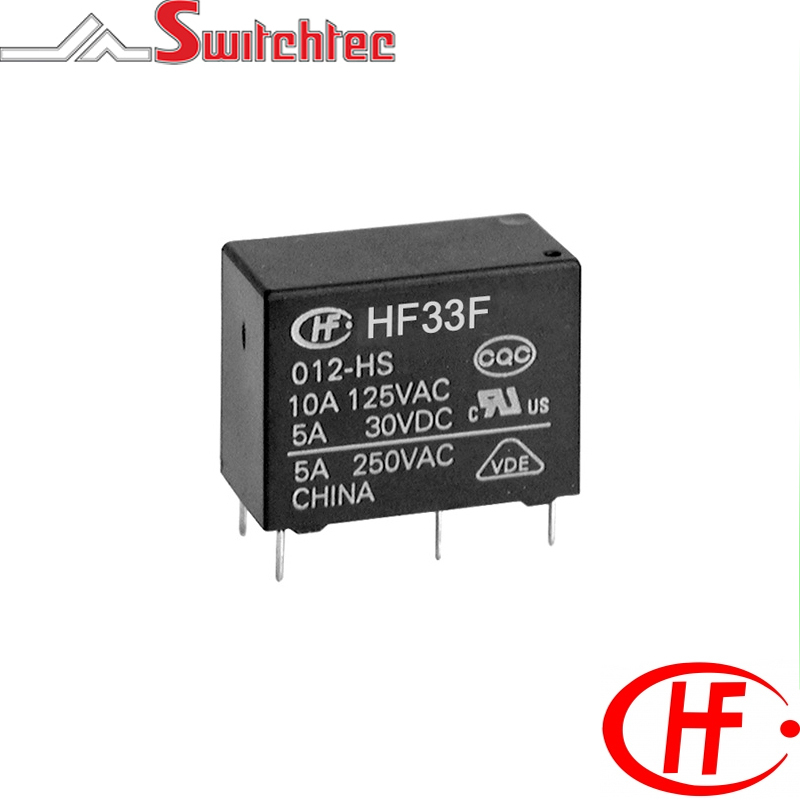

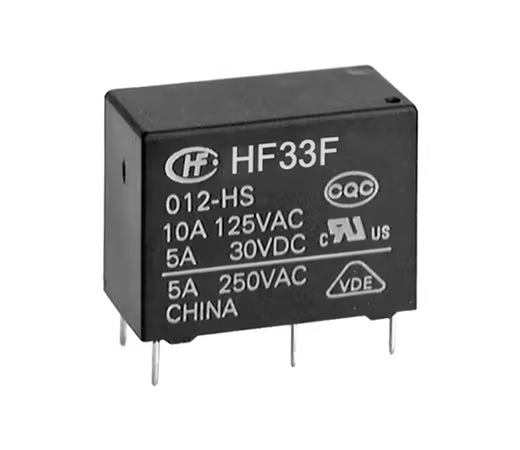

Sensitive Coil

Sensitive Coil

  • 10A switching capability
  • 1 Form A contact
  • Creepage distance: 8mm for 1N/O & 1N/C
  • Clearance distance: N/O type 4.5mm; N/C type 4mm
  • Form A contacts with sensitive coils (200mW)
  • Wash tight
  • Contact material Agni
  • RoHS compliant
  • Safety approvals UL/CUL & VDE



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF33F003HSL3 HONGFA PCB POWER RELAY 3VDC 10A 1NO HF33F/003-HSL3 1A - Single Pole Normally Open 3VDC 200mW 4.5 10AMP 2.25 0.15 45 x (1�10%)
HF33F005HSL3 HONGFA PCB POWER RELAY 5VDC 10A 1NO HF33F/005-HSL3 1A - Single Pole Normally Open 5VDC 200mW 7.5 10AMP 3.75 0.25 125 x (1�10%)
HF33F006HSL3 HONGFA PCB POWER RELAY 6VDC 10A 1NO HF33F/006-HSL3 1A - Single Pole Normally Open 6VDC 200mW 9 10AMP 4.5 0.3 180 x (1�10%)
HF33F009HSL3 HONGFA PCB POWER RELAY 9VDC 10A 1NO HF33F/009-HSL3 1A - Single Pole Normally Open 9VDC 200mW 13.5 10AMP 6.75 0.45 400 x (1�10%)
HF33F012HSL3 HONGFA PCB POWER RELAY 12VDC 10A 1NO HF33F/012-HSL3 1A - Single Pole Normally Open 12VDC 200mW 18 10AMP 9 0.6 720 x (1�10%)
HF33F018HSL3 HONGFA PCB POWER RELAY 18VDC 10A 1NO HF33F/018-HSL3 1A - Single Pole Normally Open 18VDC 200mW 27 10AMP 13.5 0.9 1600 x (1�10%)
HF33F024HSL3 HONGFA PCB POWER RELAY 24VDC 10A 1NO HF33F/024-HSL3 1A - Single Pole Normally Open 24VDC 200mW 36 10AMP 18 1.2 2800 x (1�10%)
HF33F048HSL3 HONGFA PCB POWER RELAY 48VDC 10A 1NO HF33F/048-HSL3 1A - Single Pole Normally Open 48VDC 200mW 72 10AMP 36 2.4 11520 x (1�10%)
